Choosing the right setup starts with understanding the types of MDVR cameras for fleet vehicle and how each one fits your operational needs. The right camera system directly impacts fleet safety, improves insurance claim outcomes, and supports daily efficiency. This guide explains the most important types of MDVR cameras for fleet vehicle you need to know in 2026, helping you make informed decisions for better visibility, monitoring, and control across your vehicles.
Key Takeaways
Understanding the types of MDVR cameras for fleet vehicles is essential for any fleet manager specifying new equipment or upgrading existing systems. The right camera configuration affects your ability to protect drivers, defend against false claims, and maintain complete video coverage across your operation.
- Every fleet MDVR setup starts with at least a front-facing 1080p+ camera for collision evidence, typically paired with a driver facing camera for coaching and claim protection
- Side and rear cameras rated IP67–IP69K are essential for heavy trucks, school buses, and refuse vehicles to eliminate blind spots and assist reversing operations
- Resolution, IP rating, and AHD vs. IP camera technology must be matched to your vehicle type, storage capacity, and network bandwidth constraints
- MDVR systems can support recording from 3 to 16 cameras simultaneously, providing comprehensive coverage that captures incidents from multiple angles
- Techsbook certified technicians configure and install complete MDVR camera systems for all fleet vehicles—contact techsbook.com for professional installation
What Is a Mobile Digital Video Recording (MDVR) Camera System in 2026?
A mobile digital video recording system is an industrial-grade video recorder designed for commercial vehicles rather than passenger cars. Unlike a standard dashboard camera or dash cam for fleet vehicles built for personal use, MDVR systems feature metal enclosures, lockable storage via HDD or SSD, aviation-grade connectors, and support for multiple cameras—typically 4 to 16 channels.
The types of MDVR cameras for fleet vehicles include front-facing road cameras, driver-facing driver monitoring system (DSM) units, side blind-spot cameras, rear backup cameras, and interior cabin or passenger cameras. All connect to a central MDVR unit that handles video recording, gps tracking, and often real time video streaming to fleet management software.
A typical 2026 MDVR stack includes:

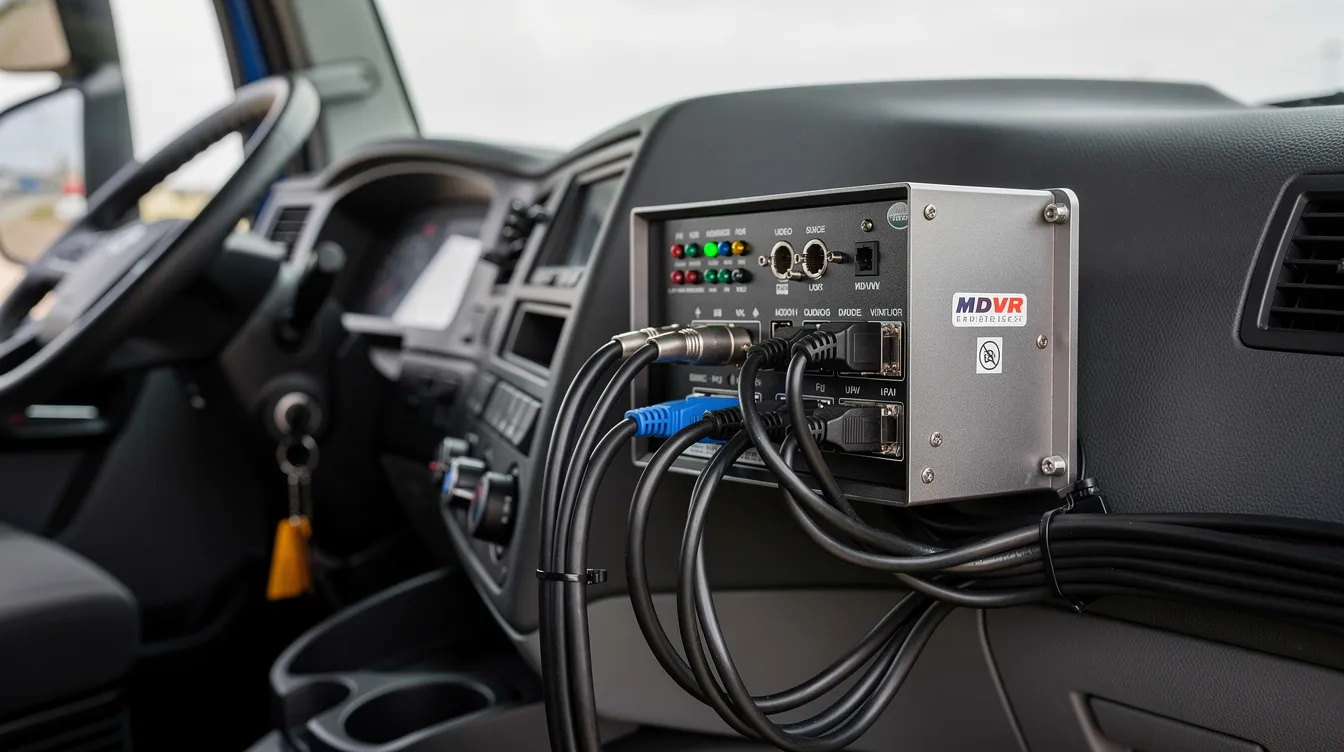

- MDVR recorder unit with HDD/SSD storage (up to 2TB capacity)
- AHD or IP recording cameras for each channel
- GPS antenna for location data embedding
- LTE/5G antenna for wireless connectivity
- Driver monitor display and panic button
- Professional wiring harness with shielded connectors
MDVR systems are built with ruggedized components to withstand harsh environments, while standard dashcams are generally made from plastic and lack the durability commercial vehicles demand. A 2024–2026 best dashcam for truckers configuration equipped with 8 cameras for insurance and safety compliance demonstrates the scale difference from consumer dash camera setups.

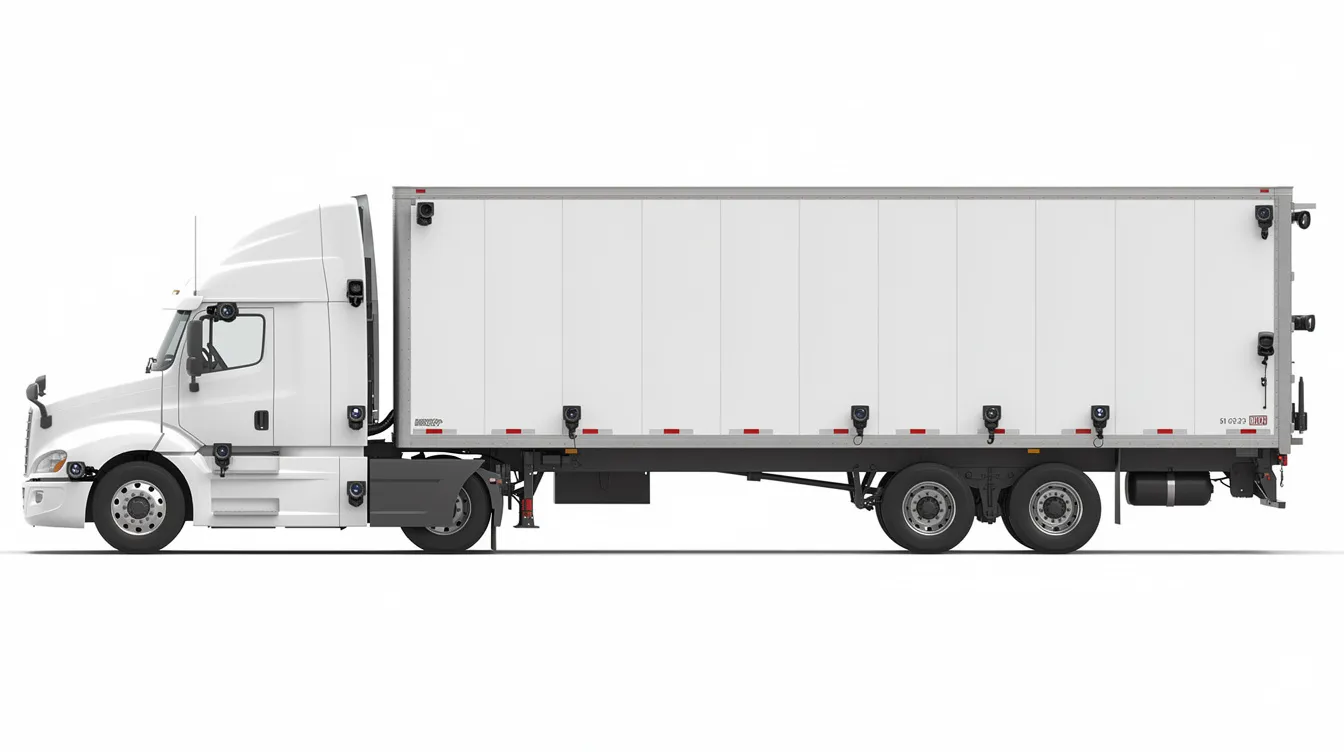

Core MDVR Camera Types for Complete Video Coverage in Fleet Vehicles
Most commercial fleets build their MDVR systems from five core camera types. Each addresses distinct operational risks and evidence requirements that fleet operators face daily. MDVRs are considered to be multi channel systems acting as a vehicle’s black box with high vibration resistance and remote monitoring capabilities.
The five primary camera module categories:
- Front-facing road cameras: Capture traffic events for insurance claims and collision evidence
- Driver-facing/DSM cameras: Monitor for driver fatigue, distraction, and dangerous driving behaviors
- Side blind-spot cameras: Cover hidden zones where lane-change and turning accidents occur
- Rear backup cameras: Document tail-end collisions and assist low-speed reversing
- Interior cabin cameras: Record passenger behavior events in school buses, taxis, and cargo vans
Common channel combinations vary by vehicle type:
- 2-channel: Cargo vans (front + driver-facing)
- 4-channel: Rigid trucks (front, driver-facing, rear, right side)
- 6–8 channel: Articulated trucks and buses requiring complete video coverage
- 12–16 channel: Multi channel setups for specialty vehicles like articulated buses or large truck hauling cargo
Front-Facing Road Cameras
The front-facing camera is non-negotiable for every MDVR system. Forward-facing cameras capture traffic events for insurance claims and provide the primary source of collision, near-miss, and hazard evidence. Video evidence from these cameras can provide undeniable proof in accidents, helping to establish fault and settle disputes between drivers.
Key technical requirements for 2026 deployments:
- Minimum 1080p high definition resolution (2MP–4MP sensors preferred)
- WDR/HDR capability for high-contrast scenes
- 30 fps minimum frame rate
- 120°–140° horizontal field of view
Plate and signage capture depends heavily on shutter speed, bitrate allocation, and WDR performance. At highway speeds of 60–80 mph, properly configured 1080p cameras with appropriate WDR reliably capture readable license plates even in rain or night vision conditions.
Typical mounting locations include behind the windshield on brackets, within combo units that incorporate the driver-facing lens, or externally in IP69K housings for garbage trucks and construction vehicles. Power integration is achieved by connecting directly to the vehicle’s electrical system, typically through ignition circuits. Ensuring compatibility with the vehicle’s electrical system is crucial for stable power supply and reliable operation, while event triggers from advanced driver assistance system modules enable priority recording during monitoring frontal collision events.
Driver-Facing & Driver State Monitoring (DSM) Cameras
Driver-facing cameras evolved beyond simple video recording into sophisticated driver monitoring systems for safety and regulations. AI-enabled MDVRs integrate advanced driver assistance systems to prevent accidents by detecting distracted driving, drowsiness, and phone use in real-time. This represents a significant advanced safety feature for modern fleets.
Hardware requirements for effective DSM:
- IR or dual-IR LEDs for night vision operation
- 720p–1080p resolution at 30 fps
- Wide dynamic range to handle sun striking the driver’s face
Modern DSM cameras implement AI/ML features including eye-closure detection, gaze tracking, phone-in-hand recognition, seatbelt detection, and real-time audible alerts coupled with MDVR event flags. These systems improve safety by identifying driver behavior events before they cause incidents.
Mounting best practices position cameras on the A-pillar or center dash aimed at the driver’s face, avoiding steering wheel occlusion. MDVR systems improve operational efficiency by allowing fleet managers to monitor driving behavior in real-time, which leads to better driver training and adherence to safety protocols. Many fleets use DSM data for coaching rather than surveillance alone, with clear driver notifications and defined data retention windows addressing privacy concerns.

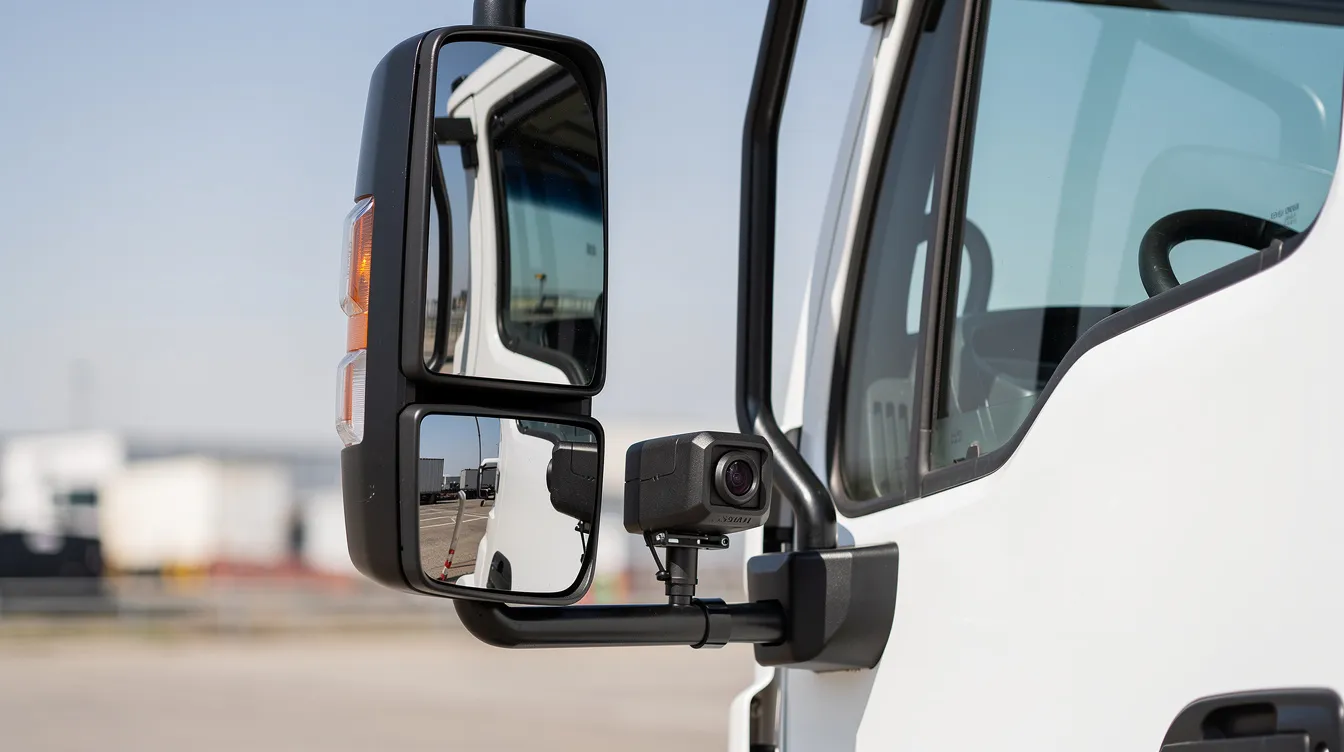

Side Blind-Spot Cameras
Side cameras directly mitigate blind spots on passenger and driver sides—a critical capability for Class 7–8 trucks, buses, refuse vehicles, and long-wheelbase vans. These positions represent some of the highest-frequency collision zones for commercial vehicles navigating lane changes, turns, and loading operations.
Environmental demands for side-mounted cameras:
- IP67 or IP69K housings for dust and water protection
- Operating range from -20°C to +70°C
- Vibration-resistant mounts with stainless hardware
- Corrosion-resistant brackets for winter road salt exposure
Trigger integration automatically displays side camera views when turn-signal indicators activate at speeds below 25–30 mph—exactly when blind spot risks peak. This ensures the surrounding environment is visible to drivers during turns and lane changes without requiring manual camera switching.
Lens specifications call for 120°–150° horizontal field of view aimed to cover full lane width plus step wells and adjacent vehicles. Common placements include mirror arms, cab corners, and trailer skirts. MDVR camera systems offer features such as IP67/IP68 waterproofing and shock resistance for reliable performance in these harsh mounting conditions.
Rear and Backup Cameras
Rear cameras serve dual functions: low-speed reversing assistance and continuous monitoring of tail-end collisions or loading dock impacts. This makes them essential for any truck equipped for urban delivery operations.
Specifications for MDVR rear cameras:
- IP68 or IP69K rating with heated lenses for snow/rain conditions
- 120°–150° field of view
- Reverse gear input triggers automatic display on driver monitor
- Continuous recording regardless of gear selection
Use cases demonstrate the evidence value: box trucks at loading docks document damage accusations by receivers, distribution vans record video in tight urban alleys, school buses capture student pickup/drop-off zones for parental dispute resolution, and refuse trucks defend against customer property damage claims.
IR capability with 10–20 meter range suffices for reversing assistance, while WDR handles daylight dock operations. In the event of a collision, video footage can be shared with police and insurance companies, potentially speeding up claim processing and ensuring fair treatment for fleet operators.
Interior, Cabin, and Passenger Cameras
Cabin cameras are standard equipment in school buses, transit buses, ride-hailing fleets, armored vehicles, and high-value cargo vans. These extended cameras record video of passenger behavior, cargo handling, and interior incidents that external cameras cannot capture.
Key design factors for interior cameras:
- Wide-angle or fisheye lenses (up to 180° FOV) to ensure complete video coverage of passenger areas
- Low-light sensitivity with integrated IR for night routes
- Vandal-resistant housings with recessed or protected lenses
- Robust mounting to resist tampering and luggage impacts
Use cases vary by fleet type: student behavior and bullying documentation in school buses, assault and theft incident recording in taxis providing passenger car cabin coverage, and chain-of-custody monitoring for armored or pharmaceutical logistics. Assets such as high-value cargo can be monitored using MDVR systems to prevent theft and ensure regulatory compliance for safety audits.
Interior cameras typically do not require IP67 ratings due to cab protection but need compliance with regional privacy signage requirements and audio recording note consent rules. A passenger vehicle or passenger car forced into a taxi role requires the same cabin documentation capabilities.
MDVR Camera Resolution and Image Quality (720p–4K)
Resolution and image quality define what precious evidence videos actually capture—plates, faces, signage. In 2026, fleet managers should treat 1080p as the baseline for front-facing and rear cameras, not a premium option.
| Resolution | Typical Use Cases | Storage Impact | When It Matters |
|---|---|---|---|
| 720p | Interior overview, secondary views | Low | Low-risk cabin monitoring |
| 1080p | Standard front-facing, rear, side | Moderate | Plate capture at highway speeds |
| 1440p/2K | High-speed plate capture | High | Interstate routes, specialty vehicles |
| 4K | Extreme detail recovery | Very High | Very high-risk lanes, legal evidence |
| Factors beyond resolution affect clarity: sensor size, lens quality, bitrate allocation, WDR/HDR performance, and correct focus. Video compression supported by H.264 or H.265 codecs balances file size against evidence quality for retention calculations. |
Rule of thumb: if you regularly dispute fault on high-speed highways, use at least 1080p front cameras with 8–10 Mbps streams. Reserve 4K for specialized vehicles where video recording varies depending on specific evidence requirements or very high-risk corridors.
AHD vs. IP Cameras in MDVR Systems
AHD (Analog High Definition) and IP (network) cameras both remain in active fleet use in 2026, each serving different deployment scenarios. Understanding the trade-offs helps fleet managers standardize equipment effectively.
AHD camera advantages:
- Simpler wiring using coaxial or 4-pin aviation cables
- Lower cost per channel
- Proven durability with existing cable stock
- Straightforward troubleshooting
IP camera advantages:
- Higher resolution flexibility (mixed 1080p/4MP across channels)
- Power over Ethernet (PoE) reduces dedicated power wiring
- Advanced video recording feature integration with IT networks
- Better support for remote access analytics
Many modern MDVRs implement hybrid architecture supporting both AHD and IP inputs simultaneously. A typical configuration might run 7 AHD channels at 720p for secondary views while dedicating 1 IP channel at 1080p for the primary front-facing camera. MDVRs implement cyclic recording where storage exhaustion triggers overwriting of oldest footage with new connected sensors data.
Fleets often standardize on AHD for external vehicle cameras due to existing infrastructure while introducing IP for cameras installed requiring key features like DSM analytics or high-resolution front capture.
Environmental Protection: IP67, IP68, and IP69K Camera Ratings
Ingress Protection (IP) ratings quantify dust and water resistance for cameras exposed to rain, snow, mud, and pressure washing. Understanding these ratings prevents premature camera failures in harsh operating environments.
- IP67: Dust-tight, withstands 1 meter water submersion for 30 minutes. Suitable for most side and rear mounting on road vehicles.
- IP68: Extended-depth submersion beyond IP67. Required for vehicles crossing water fords or operating in flood-prone regions.
- IP69K: Protection against high-pressure, high-temperature spray (80°C at 80–100 bar). Essential for refuse trucks, cement mixers, fire trucks, and vehicles undergoing regular pressure washing.
Front-facing cameras behind windshields may not require IP ratings, but side, rear, and trailer cameras should be IP67 or better. For vehicles operating in northern winters or coastal environments, specify stainless hardware, UV-resistant housings, and sealed cable glands for feature extended storage security of camera connections.
MDVR systems are built with ruggedized components designed for these harsh conditions, unlike standard dashcams with exposed SD cards providing minimal redundancy or storage extension protection. Fleet operators comparing MDVRs with the best dashcams of 2024 and their key features should weigh durability and multi-channel coverage alongside consumer-focused conveniences.
Typical Camera Counts by Vehicle Type (2026)
Camera channel requirements depend on vehicle size, risk profile, and regulatory demands. These baselines reflect real 2026 deployment patterns across North American fleets.
| Vehicle Type | Min. Cameras | Common Setup | Coverage Positions |
|---|---|---|---|
| Cargo Van | 2 | 4 | Front, driver-facing, rear, right side |
| Class 8 Tractor-Trailer | 4 | 6–8 | Front, DSM, left/right side, rear tractor, rear trailer |
| School Bus | 6 | 8 | Front, rear, driver-facing, right side, 2–3 interior |
| Dump/Refuse Truck | 6 | 8 | Front, rear, sides, elevated backup, interior |
| Taxi/Ride-Hail | 4 | 6 | Front, rear, driver-facing, interior (2) |
| A typical 4-camera setup for light delivery vans covers front, driver-facing, rear, and right side—add a fifth camera for left side coverage on dense urban routes. 4-channel MDVRs are suitable for smaller vehicles, while 8/12/16-channel MDVRs are designed for larger vehicles needing comprehensive coverage including internal monitoring and blind-spot surveillance. |
Single-channel DVRs featuring one camera recording the front windshield view remain the most basic type, simple and affordable but insufficient for commercial fleet management requirements. Dual-channel DVRs adding rear or interior coverage provide better protection but still lack the multi channel setups commercial fleets need.
Installation and Integration Considerations
Camera selection must account for physical mounting options, cable routes, and integration with the vehicle’s electrical system—not just catalog specifications. Ensuring compatibility with the vehicle’s electrical system is crucial for proper integration and reliable operation. Professional installation of fleet telematics and camera systems makes the difference between reliable systems and intermittent dropouts.
Mounting best practices:
- Use solid metal brackets, avoid moving panels
- Position to minimize glare and reflections
- Apply tamper-resistant fasteners in exposed locations
- Allow proper drainage for external housings
Wiring and connectors:
- Use shielded aviation cables matched to MDVR specifications
- Apply strain relief at camera and MDVR termination points
- Select correct cable lengths avoiding tight bends
- Route away from hot surfaces and moving components
Integration with turn signals, reverse lights, ignition circuits, CAN bus, and panic buttons allows the MDVR to index video events for easier review. Many MDVR systems include features such as GPS logging, which embeds location data and speed into video files, providing crucial context for recorded footage during incident reconstruction.
The contrast between professional installation with circuit diagramming and bench-testing versus ad hoc in-house jobs emerges clearly in field reliability. Operators adopting single-channel or dual-channel dashcams should still follow step-by-step dashcam installation best practices to avoid wiring errors and poor mounting that degrade video quality. Integrated systems may come with built-in recording capabilities or be aftermarket solutions integrated into components like rearview mirrors or infotainment units, offering a cleaner look but potentially limiting flexibility compared to standalone MDVR units. Improper installation creates live video dropouts and ground loop noise regardless of equipment quality.
Operational Best Practices and Maintenance
Even the best MDVR cameras fail to deliver value without scheduled maintenance. The use of MDVR can reduce insurance fraud by providing clear video evidence that exonerates drivers in staged accident claims only when systems function correctly and continuously.
Routine maintenance checks:
- Weekly visual inspections for damage or lens obstruction
- Quarterly timestamp verification and focus quality assessment
- Periodic playback audits sampling all channels monthly
- Lens cleaning using distilled water and lens paper
Configuration management:
- Standardize camera profiles (exposure, WDR, resolution, bitrate) across fleet
- Document all configuration changes for troubleshooting
- Store settings backup with vehicle records
Environmental factors like snow build-up on exterior cameras, pressure washing impacts, and loading dock collisions commonly cause misalignment. Training drivers and yard staff to recognize offline cameras and report vehicles for tech inspection prevents extended operation with degraded coverage. Advanced MDVR systems can offer real-time video streaming capabilities, allowing fleet managers to monitor live video from vehicles remotely via personal computers or mobile devices—but only when cameras remain operational.
Pro Tips from Field Technicians
This practical advice comes from technicians who have cameras installed on thousands of MDVR systems across real fleets from 2020–2026. These lessons directly enhance safety and reduce troubleshooting time.
Bench-test before vehicle installation: Assemble the complete MDVR unit, all cameras, cables, power supply, and connectivity modules on a workbench. Confirm channel labeling accuracy, IR illumination operation, focus quality, and trigger wiring logic before committing to vehicle installation.
Maintain spare parts inventory: Stock spare cameras, cables, and mounting hardware for each major camera type (front, DSM, side, rear, cabin). Ready inventory enables same-day repair when field failures occur, preventing extended operation without continuous monitoring coverage. Pairing this with access to a professional telematics technician marketplace ensures skilled installers are available when parts and vehicles are ready.
Match cables exactly to camera specifications: Use the precise connector type and pin-out specified by the MDVR vendor. Incorrect power or video pin connections cause frame rate instability, color distortion, and IR malfunction. MDVR units are designed with tamper-proof storage solutions ensuring footage security, but connector issues prevent footage from reaching storage entirely.
Document vehicle camera maps: Create detailed camera position documentation for each vehicle showing physical mounting locations, MDVR software channel assignments, and integration logic. For vehicles using mirror dash cam systems with integrated displays, documentation should also note how mirror feeds map to MDVR channels. Store this with the configuration file—it saves hours during troubleshooting and future upgrades.
How Techsbook Can Help
Techsbook certified technicians specialize in specifying and installing MDVR camera systems across vans, heavy trucks, buses, tow trucks, and specialty vehicles. Services include on-site surveys, camera-type selection (front, DSM, side, rear, cabin), IP rating and resolution recommendations, and integration with existing telematics and fleet management software policies.
Whether you need to establish internet connectivity for real time video streaming, configure driving habits monitoring, or ensure storage supported by proper HDD sizing, Techsbook technicians deliver professional installation with full documentation. Fleet managers can use Techsbook’s direct booking platform to schedule installs in three steps, reducing coordination overhead.
Techsbook certified technicians configure and install MDVR camera systems for all vehicle types. → Book a certified MDVR installer
Fleets that want an ongoing, scalable way to source technicians can also enroll as Techsbook customers for managed installer access.
Internal Resources and Further Reading
MDVR camera selection intersects with broader topics including system architecture, storage planning, and network connectivity. These resources provide deeper technical coverage:
- MDVR Systems Complete Guide: High-level overview of recorders, connectivity options, and policy design for fleet managers
- MDVR Storage and Retention Planning : HDD/SSD sizing, H.264/H.265 compression efficiency, and retention-time calculations for different resolutions and channel counts
- Troubleshooting MDVR Camera Signal Issues : Diagnose and fix common problems including interference, dropout, and incorrect pin-outs
FAQ
These questions address common practical concerns that remain after designing an MDVR camera layout. Each answer provides actionable guidance for 2026 fleet deployments.
What resolution do MDVR cameras need?
1080p is the minimum recommended resolution for front and rear cameras in 2026, with 720p acceptable only for low-risk interior views where plate or face capture isn’t the goal. Reserve 2K–4K for high-speed plate capture or specialty evidence needs. Resolution choice must balance against storage capacity—higher resolutions require larger HDD/SSD or accept shorter retention windows. MDVR systems can support larger storage capacities, often up to 2TB, while standard dashcams typically support only up to 256GB.
What is IP67 on a camera?
IP67 means the camera is dust-tight and can withstand temporary immersion in up to 1 meter of water for 30 minutes. This rating is suitable for exterior side and rear mounting on most road vehicles operating in normal weather conditions. Fleets that pressure-wash vehicles or operate in very harsh environments should prefer IP69K-rated cameras for additional protection against high-pressure spray.
How many cameras does a fleet truck need?
Practical ranges run from 2 cameras for basic front and driver coverage through 4 cameras adding side and rear views, up to 6–8 cameras for full blind-spot, cargo, and passenger monitoring on Class 7–8 trucks and buses. Insurance requirements, route risk profiles, and vehicle type often push fleets toward at least 4-channel MDVR systems by 2026. A standard dashcam typically supports up to 2 cameras, while an MDVR can support recording from 3 to 16 cameras simultaneously.
Do MDVR cameras record all the time or only on events?
Most MDVR systems are configured for continuous recording while the ignition is on, with event markers added for harsh braking, collisions, and DSM alerts for easier review. Fleets can also configure parking or standby modes where select cameras record when motion or impact is detected while the vehicle is off, subject to power-management policies. This continuous approach ensures nothing is missed while event indexing speeds up incident review.
Can I mix AHD and IP cameras in the same MDVR system?
Many modern hybrid MDVRs support both AHD and IP inputs, allowing fleets to combine legacy AHD side and rear cameras with newer high-resolution IP front or cabin cameras. Mixing technologies complicates network and storage planning, so standardize where possible and verify channel types and bandwidth limits before purchasing hardware. Extended storage security depends on consistent configuration across all channels.
Conclusion
Successful MDVR deployments match camera type (front, DSM, side, rear, cabin), resolution, and IP rating to specific fleet risks and vehicle designs rather than purchasing generic kits. MDVR systems significantly enhance fleet safety by providing undeniable video evidence in accidents, helping determine fault and settle disputes efficiently.
Careful planning of camera positions, channel counts, and storage capacity determines how useful recorded footage is when incidents occur. The safety concept began with simple front-facing dashcams but evolved into comprehensive multi channel systems that protect both drivers and fleet operations.
