How Telematics Installation Process Works: End-to-End for Real Fleets
What This Telematics Installation Guide Will Explain
Telematics installation is a coordinated process that connects hardware—GPS trackers, dashcams, ELDs, and sensors—to vehicles and links them to a fleet management platform. The work involves planning, vehicle preparation, certified technician deployment, physical wiring and mounting, system activation, and post-install verification. Each step matters because poor execution at any stage creates data gaps, rework, and downtime that fleets cannot afford.
This guide focuses on real fleet environments: vans, delivery trucks, Class 8 tractors, and mixed assets. Consumer car installations are simpler. Commercial fleets deal with compliance requirements, vehicle diversity, geographic spread, and the need for repeatable results across hundreds or thousands of units.
The telematics installation process covered here includes aspects that contribute to fleet optimization:
- Pre-install planning and coordination
- Vehicle readiness and staging
- Technician assignment and credentialing
- On-site installation and wiring
- System testing and activation
- Post-install verification and documentation
Hardware types discussed include hardwired GPS trackers, OBD devices, forward-facing and multi-camera dashcams, ELD tablets, and auxiliary sensors. Techsbook coordinates these steps nationally through a certified technician network, handling the scheduling, quality assurance, and real-time tracking that make large deployments possible. This article explains workflow and coordination—not deep wiring diagrams for specific brands.
Understanding Fleet Telematics Hardware and Installation Types
Telematics systems combine several core technologies to collect and transmit vehicle data. These systems typically use GPS receivers to capture location, speed, and movement, onboard diagnostics to monitor vehicle health, and wireless communication such as cellular or satellite networks to send data to fleet management platforms. Sensors and cameras expand this data set by capturing safety, compliance, and operational information.
Telematics technology combines GPS location tracking, onboard diagnostics, and cellular or satellite communications to feed real-time data into a fleet management platform. Every telematics system starts with hardware installed in the vehicle, and the installation type depends on fleet needs and vehicle configurations.
Common Device Categories Installed in Fleets
| Device Type | Primary Function | Typical Installation Method |
|---|---|---|
| Hardwired GPS trackers | Location tracking, geofencing, trip history | Direct wiring to vehicle’s electrical system |
| OBD-II devices | Engine diagnostics, fuel consumption, driver behavior | Plug into vehicle’s OBD II port under steering column |
| Dashcams and multi-camera systems | Driver safety monitoring, incident recording | Hardwired to constant and ignition power |
| ELDs | Hours-of-service compliance, DVIR logging | Connected via J-bus, OBD II, or direct wiring |
| Asset trackers | Trailer and equipment monitoring | Battery-powered or hardwired |
| Accessories | Panic buttons, temperature probes, PTO sensors | Auxiliary wiring to main telematics device |
Some telematics devices support self-installation, such as plug-and-play OBD-II devices that connect directly to a vehicle’s diagnostic port. These installs typically require minimal time and no tools. More complex systems, including hardwired GPS units, dashcams, and ELDs, require integration into the vehicle’s electrical system and are best handled by professional installers to ensure reliability, safety, and consistent performance.
The difference between plug-and-play and professional installation comes down to complexity and reliability. An OBD device plugs directly into the vehicle’s OBD II port, taking 10–20 minutes with no tools. A hardwired GPS tracker or multi-camera system requires accessing the vehicle’s electrical system, routing cables behind panels, and tapping into fuse blocks—work that takes 45–90 minutes and demands trained technicians.
Most commercial fleets with mixed assets and compliance requirements rely on professional telematics installation for consistency and safety. A 2022 Ford Transit van running a dashcam, GPS tracker, and ELD tablet is a common configuration. Each device needs proper power, mounting, and integration.
Newer vehicles sometimes include factory-fitted telematics modules. These can coexist with aftermarket telematics hardware, but installation teams need to know what already exists to avoid conflicts or redundant data streams.
Pre-Installation Planning and Coordination
The telematics installation process, including driver monitoring systems, starts weeks before anyone touches a vehicle. For fleets over 100 units, planning phases often span several weeks to coordinate schedules, access, and device allocations without disrupting operations.
Data Collection and Scope Definition
Effective planning requires compiling:
- VINs, license plates, and unit numbers for every vehicle
- Vehicle types: light-duty vans, Class 8 tractors, specialty equipment
- Physical locations: depots, terminals, remote yards
- Driver schedules and vehicle utilization patterns
Fleet managers work with providers to define installation scope per vehicle. This means specifying which telematics device goes where: GPS tracker only, forward-facing camera plus side cameras, ELD tablet, or a full multi-device configuration with PTO monitoring or trailer tracking.
Scheduling Strategy
Grouping vehicles by depot or region creates install “waves” that technicians can complete efficiently. Fleets typically choose installation windows during:
- Night shifts when vehicles return from routes
- Weekends when utilization drops
- Scheduled maintenance periods
For multi-site fleets across several states, coordination includes time zone differences and shop access rules. Some facilities require advance notice, safety orientations, or badging before technicians can enter.
Platforms like Techsbook use this planning data to automatically route work to qualified technicians, lock in SLAs, and track completion across locations—turning a logistical puzzle into a manageable deployment program.
Vehicle Readiness and Staging Before the Technician Arrives
Even the best technician network loses time if vehicles are not ready. Staging discipline directly affects whether all installs finish on schedule, especially for larger deployments covering 150 vehicles across multiple terminals.
Practical Staging Steps
| Task | Why It Matters |
|---|---|
| Park vehicles in a designated staging area | Reduces search time and confusion |
| Ensure keys and fobs are accessible | Prevents delays waiting for driver handoff |
| Clear dashboards and windshields | Provides clean mounting surfaces |
| Provide indoor space for complex installs | Allows headliner and trim removal in controlled conditions |
| Confirm vehicle power and battery health | Avoids surprises with dead batteries or parasitic drains |
Operations teams should communicate which assets are scheduled each day using printed lists or digital boards showing unit numbers and plate numbers. This prevents technicians from guessing which vehicles to touch.
For trucks that have been idle for weeks, verify battery voltage before the technician arrives. A technician discovering a dead battery on arrival wastes 30+ minutes waiting for a jump or charger.
Site access also matters: yard entry approvals, safety gear requirements like high-visibility vests or steel-toe shoes, and any mandatory orientations. Large enterprise fleets often have strict protocols, and technicians without proper credentials cannot enter.
Technician Assignment, Credentialing, and Job Dispatch
Not every technician is qualified for every telematics installation job. Installing a simple OBD device in one vehicle is different from wiring a 4-channel camera system in a heavy-duty truck.
How Technician Matching Works
A platform like Techsbook filters technicians by:
- Certifications: ASE electrical, manufacturer-specific training, telematics endorsements
- Experience with specific hardware: multi-camera systems vs. basic GPS
- Vehicle class familiarity: light-duty vans vs. Class 8 tractors
- Location: matching technicians near the depot to reduce travel time
Credentialing checks matter to fleets. These include insurance verification, background checks where required, MVR reports when technicians need to move vehicles, and adherence to OEM or platform-specific standards. Certified technicians achieve roughly 99% first-pass success rates compared to 70% for unmanaged self-installs.
Digital Work Orders
Each job is dispatched with clear instructions:
- Vehicle identifiers: VIN, plate, unit number
- Device counts and types
- Wiring diagrams from the provider
- Special instructions (e.g., “install side camera on passenger mirror only”)
Technicians confirm arrival, upload photos at key steps, and update job status in real time: en route, on-site, complete. For enterprise fleets, this keeps the same standards and documentation format at every location—not piecemeal per shop.
On-Site Telematics Installation Steps Inside the Vehicle
While telematics device designs differ, the core professional installation process follows a repeatable sequence. This consistency is what separates reliable deployments from patchwork installs that fail under real-world conditions.
Vehicle Intake
Before touching any wiring, the technician:
- Verifies VIN and plate match the work order
- Performs a walk-around inspection for existing electronics or damage
- Discusses constraints with the site contact (e.g., no drilling in certain panels)

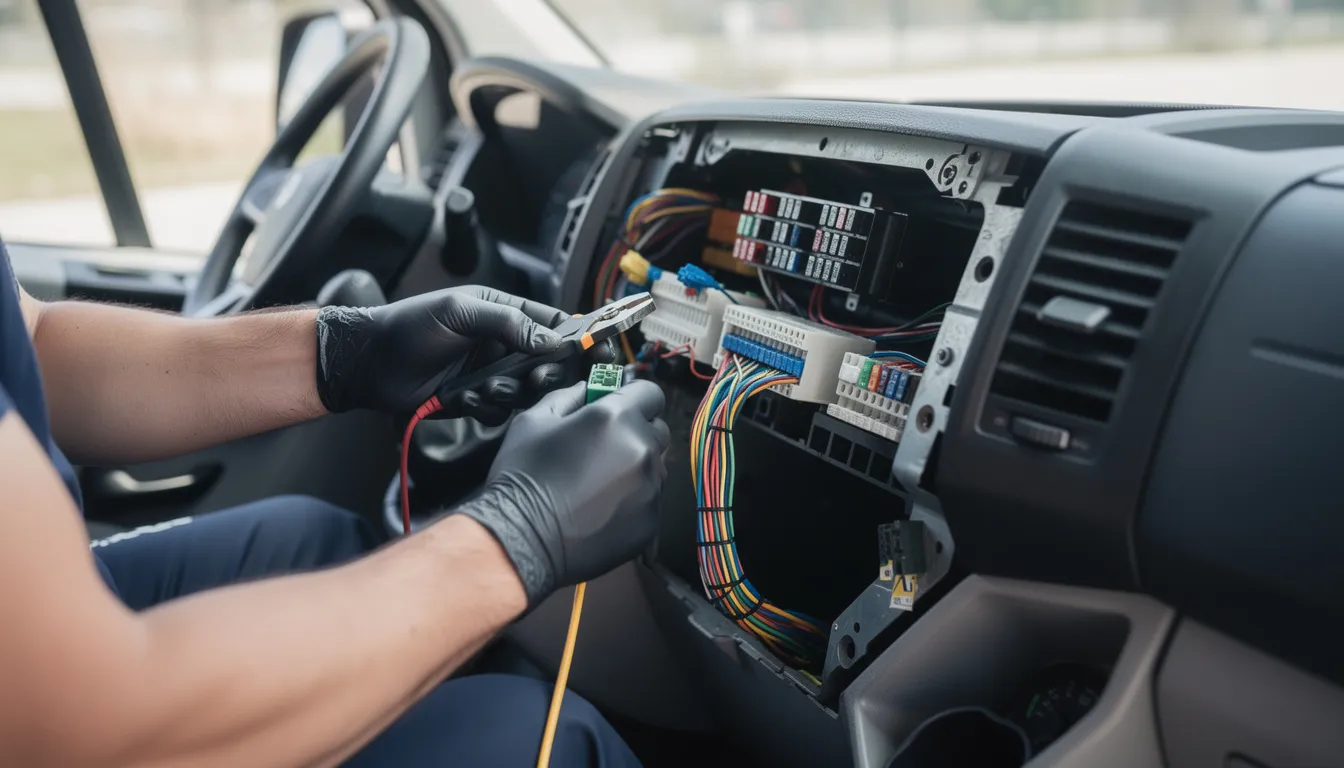

Hardwired Installation Sequence
- Safe power-down: Disconnect battery or follow lockout procedures
- Panel and trim removal: Access areas behind the dashboard, A-pillars, headliner
- Identify power sources: Locate constant 12V, ground, and ignition-switched circuits using a multimeter
- Route cabling: Run wires behind trim and headliners, protecting with loom or tape
- Connect devices: Use quick splice clips, Posi-Taps, or bypass connector where appropriate
- Mount hardware: Secure telematics boxes and cameras with mounting bracket or zip ties
- Reassemble: Replace panels and verify nothing rattles or obstructs vehicle controls
Device Placement Guidelines
- GPS modules need clear sky view—near the dashboard or under the windshield
- Dashcams mount within wiper sweep but outside airbag deployment zones
- ELD tablets position where drivers can reach them without obstructing road view
- Multi-camera arrays require careful routing to cover interior, forward, and side angles
Multi-device installs—for example, GPS plus 4-channel camera system plus ELD—add complexity. A simple GPS tracker might take 30–45 minutes. A full multi-device configuration extends to 2–3 hours per vehicle depending on wiring routes and mounting requirements.
A professional installer avoids shortcuts: exposed wiring, unsecured hardware, or connections that draw constant power and drain batteries overnight. These mistakes cause the 5–10% of early failures that create rework costs and fleet frustration.
System Testing, Activation, and Connectivity Checks
Installation is not finished when the last cable is tied. Testing and activation confirm that the entire process has worked and the telematics system is providing valuable data.
Ignition and Power Checks
With the vehicle’s ignition turned on, technicians verify:
- All telematics devices power up correctly
- No unexpected warning lights appear on the dashboard
- Internal batteries (if applicable) are charging
Connectivity Tests
| Check | What to Verify |
|---|---|
| GPS lock | Satellite fix within 30–60 seconds (cold start may take up to 5 minutes) |
| Cellular signal | Device connects to network and reports to cloud platform |
| Live data flow | Vehicle appears correctly in fleet portal with real time data |
| Device-specific functions | Dashcam uploads video clips, ELD logs driving status, aux inputs toggle |
For harsh braking detection or speed alerts, technicians may perform a short test drive to confirm accelerometer calibration and data accuracy.
For distributed fleets, a central team often monitors a dedicated “go-live” dashboard during installation days. This catches activation issues immediately—before the technician leaves the site.
Techsbook workflows require installers to obtain explicit confirmation of live data and correct mapping of each telematics device to the right vehicle record before closing a job. No confirmation, no close-out.
Post-Install Verification, Documentation, and Quality Assurance
Post-install quality assurance keeps telematics data reliable months and years after deployment. Fleets that skip this step often see 20–25% degradation in data accuracy within six months—degradation that undermines every decision based on that data.
Standard Documentation Items
- Before and after photos of mounting locations and cable routing
- Labeled device serial numbers linked to VIN
- Fuse tap locations and wire colors
- Confirmation of final mounting positions for cameras and GPS units
Digital Checklists
Technicians complete checklists for each vehicle recording:
- All required components installed
- All devices tested and activated
- Any exceptions or notes for follow-up
QA Reviews
Techsbook and telematics providers conduct random or targeted quality assurance reviews:
- Photo audits comparing documentation to standards
- Remote data checks confirming devices report correctly
- Re-inspections for large rollouts where consistency matters
Why do accurate records matter? They speed troubleshooting when something fails. They support warranty claims when devices need replacement. They prove compliance for audits or accident investigations. And they let fleet managers identify areas for improvement in future deployments.
Standardizing a single documentation format nationwide makes it easier for operations and IT teams to manage thousands of installs over multiple years—instead of digging through inconsistent paperwork from different vendors.
Scaling Telematics Installation for Large and Distributed Fleets
Complexity grows with fleet size, mixed equipment, and geography. What works for 20 vehicles at one location becomes a multi-month program when you scale to 500+ units across 10 depots.
Common Enterprise Scenarios
- Mixed fleets: light-duty vans, Class 8 tractors, and specialty equipment each requiring different vehicles and configurations
- Geographic spread: vehicles stationed in different states with different access rules and time zones
- Seasonal rotations: rental units cycling in and out of the fleet
- Staggered deliveries: new vehicles arriving quarterly that need telematics device installation before entering service
Standardization and SLAs
Standardized installation playbooks ensure the same telematics installation steps—such as dashcam setups and audio configuration—are followed in every region. This includes:
- Consistent device placement and wiring methods
- Identical documentation formats
- Defined SLAs for completion time and first-time success rates
For multi-phase rollouts—Phase 1 GPS-only in Q2, Phase 2 adding dashcams and ELDs in Q4—clear change management plans prevent confusion about which vehicles get which devices.
Infrastructure at Scale
Platforms like Techsbook support API-based scheduling and status updates. Telematics providers and fleet IT teams can trigger, track, and report on installs at scale without manual coordination.
Treating telematics installation as a repeatable system—with metrics like first-time completion rate and average install duration—helps fleets reduce costs, avoid rework, and save time. Per-vehicle installation costs typically range from $100–$400, and timelines span from days to months depending on scope.
Training Drivers and Operations Teams After Installation
Even a perfect hardware installation fails if drivers and dispatchers do not understand how to use the telematics system. Adoption depends on clear communication about what changed and why.
Driver Orientation
Drivers should know:
- Where devices are located (dashboard camera, ELD tablet, GPS unit near the steering wheel area)
- What indicator lights or sounds mean
- How dashcams and ELDs affect daily workflow
- What driving habits the system monitors and how data collected influences safety scores
Operations and Safety Team Briefings
Operations teams need access to:
- Live maps and location tracking
- Alerts for speed, harsh braking, and geofence violations
- Video review tools for dashcam footage
- Maintenance reports tracking vehicle performance and engine diagnostics
Larger deployments align installation waves with short training sessions or toolkits—quick-start guides, short videos, in-cab cards. This keeps hardware go-live and user training synchronized.
When drivers understand that telematics technology supports driver safety and operational efficiency rather than punitive monitoring, adoption improves and data quality increases.
Why Understanding the Telematics Installation Process Matters
Telematics installation is a coordinated sequence—not a single service call—that impacts data quality, safety, and uptime for years after deployment.
Practical Benefits of Understanding the Process
Understanding how telematics installation works helps fleets:
- Make better scheduling decisions that minimize vehicle downtime
- Set realistic rollout timelines instead of overpromising to stakeholders
- Reduce risk of rework, failed activations, and data gaps
- Budget accurately for labor, vehicle downtime, and ongoing support
When fleet managers know what pre-install planning, technician workflows, testing, and documentation actually involve, they avoid the surprises that derail deployments.
Reliable telematics data drives measurable outcomes: fuel efficiency improvements of 15–30%, crash reductions of 20%, and proactive maintenance that prevents breakdowns. Poor installation quality undermines every one of these benefits and leads to costly troubleshooting, compliance violations, and unreliable reporting on vehicle performance.
Where Techsbook Fits
Techsbook exists as the service infrastructure layer that helps telematics providers and fleets execute these steps consistently across the U.S. The platform handles technician sourcing, scheduling, credentialing, quality assurance, and real-time job tracking—so providers focus on technology and fleets focus on operations.
Fleets who understand how telematics installation works are better prepared to scale their programs over multiple years and technology refresh cycles. They stay ahead of operational challenges, save money on rework, and make informed decisions about when and how to install telematics across their entire operation.
For next steps, explore related topics: estimating installation costs per vehicle, building an internal deployment plan, or integrating installation status into your fleet software through API connections.
