Trace back 80% of MDVR failures to their root cause and you find a wiring problem — not a hardware defect. The MDVR wiring diagram is not a formality. It is the blueprint that determines whether a mobile digital video recorder records reliably for years or fails silently at the worst possible moment.
Bad power wiring drains vehicle batteries, prevents startup, or causes mid-drive reboots that create gaps in video evidence. Bad camera wiring produces signal loss, black screens, and interference lines across the display. A compromised ground connection generates visual noise across every channel simultaneously. Incorrect GPS antenna wiring means the recorded footage has no synchronized location data — making it far less useful in disputes, insurance claims, or legal proceedings.
This guide covers MDVR wiring diagram in a complete MDVR installation: power, ACC trigger, ground, camera signal lines, GPS antenna, and 4G/WiFi connectivity. Every section is written from real installation experience — including what goes wrong and how to catch it before the panels go back on.
The Mobile Digital Video Recorder Wiring Harness — Wire by Wire
Every mobile digital video recorder ships with a wiring harness. The connector count and wire colors vary by manufacturer, but the core connections are consistent across all platforms. Understanding what each wire does is the non-negotiable starting point for any MDVR installation.
Red Wire — Constant Power (V+)
The red wire connects to an always-hot battery positive source — either a dedicated fuse position in the fuse box or a direct battery connection with an inline fuse holder. This wire provides standby power to maintain the real-time clock, preserve system settings, and keep the MDVR ready to boot when the ignition fires.
Key requirements:
- Inline fuse within 18 inches of the power source — 5A for 4-channel units, 10A for 8-channel units
- Never connect to a switched circuit — this wire must hold voltage 24/7
- If wired incorrectly: the clock resets on every ignition cycle, recordings lose timestamp accuracy, and platform data becomes unreliable
Yellow Wire — ACC (Ignition Trigger)
The ACC wire is the most consequential connection in the entire harness. It tells the video recorder when to start recording and when to shut down safely.
When voltage appears on the ACC input — typically when the ignition reaches accessory or run position — the MDVR powers up, loads its operating system, and begins continuous recording. When ACC voltage drops, the unit finishes writing its current video files, closes them correctly, and powers down.
What happens when the ACC wire is wrong:
| Connection Type | Behavior | Result |
|---|---|---|
| Correct switched circuit | On with ignition, off when key removed | Normal recording + safe shutdown |
| Always-hot circuit | Always live | 24/7 operation, battery drain, corrupt storage |
| Not connected | No ACC signal | Unit never starts automatically |
| Unstable/cycling circuit | Voltage drops during operation | Mid-drive reboots, video gaps |
| If the ACC wire is connected to an always-hot circuit, the MDVR runs 24/7. A standard 4-channel unit draws 3–5A continuously. That drains a truck battery in 12–18 hours when the vehicle is parked. Worse, the unit never executes a graceful shutdown — so every power loss from battery depletion corrupts the current recording file on the HDD or SD card. |
Black Wire — Ground
The ground wire connects to bare metal chassis ground. Not painted metal. Not coated sheet metal. Bare, clean, conductive vehicle frame material.
The ground wire must be as short as physically possible. Long ground runs increase impedance, and high-impedance grounds cause random reboots and voltage instability across all connected devices. Verify with a multimeter on resistance mode: the reading between your ground connection point and any other chassis ground should be under 0.5Ω. Anything higher means the connection is inadequate.
Multiple ground paths — for example, from camera bodies making contact with the vehicle chassis through their mounting brackets — create ground loop interference. This manifests as horizontal banding scrolling through the camera image on screen and in video files. It affects multiple channels simultaneously, which is how you distinguish it from a single-camera fault.
How to Find the Right ACC Source for Real-Time Recording
Finding a clean ACC source is where most DIY installs fail. A real-time recording system depends entirely on this wire switching cleanly. Here is the correct process.
The 3-Step ACC Test
- Set your multimeter to DC voltage mode
- With ignition OFF — probe the suspect wire against chassis ground. Target reading: 0V
- Turn ignition to accessory position — reading must jump to full battery voltage (12V or 24V depending on vehicle system)
- Start the engine — voltage must remain stable at battery-charge level (13.5–14.5V for 12V systems)
- Turn ignition fully OFF — voltage must drop to 0V within 5 seconds
Best ACC Sources
- Radio or head unit ignition feed — switches cleanly and precisely
- A dedicated switched position in the fuse box (fuse tap for clean installation)
- Instrument cluster switched feed
ACC Sources to Avoid
- HVAC blower circuits that stay live for 10–15 minutes after ignition off
- Any accessory circuit that cycles on and off during vehicle operation
- Circuits shared with high-draw components like air compressors or work lighting
→ See: How to Power an MDVR System for full power connection guide

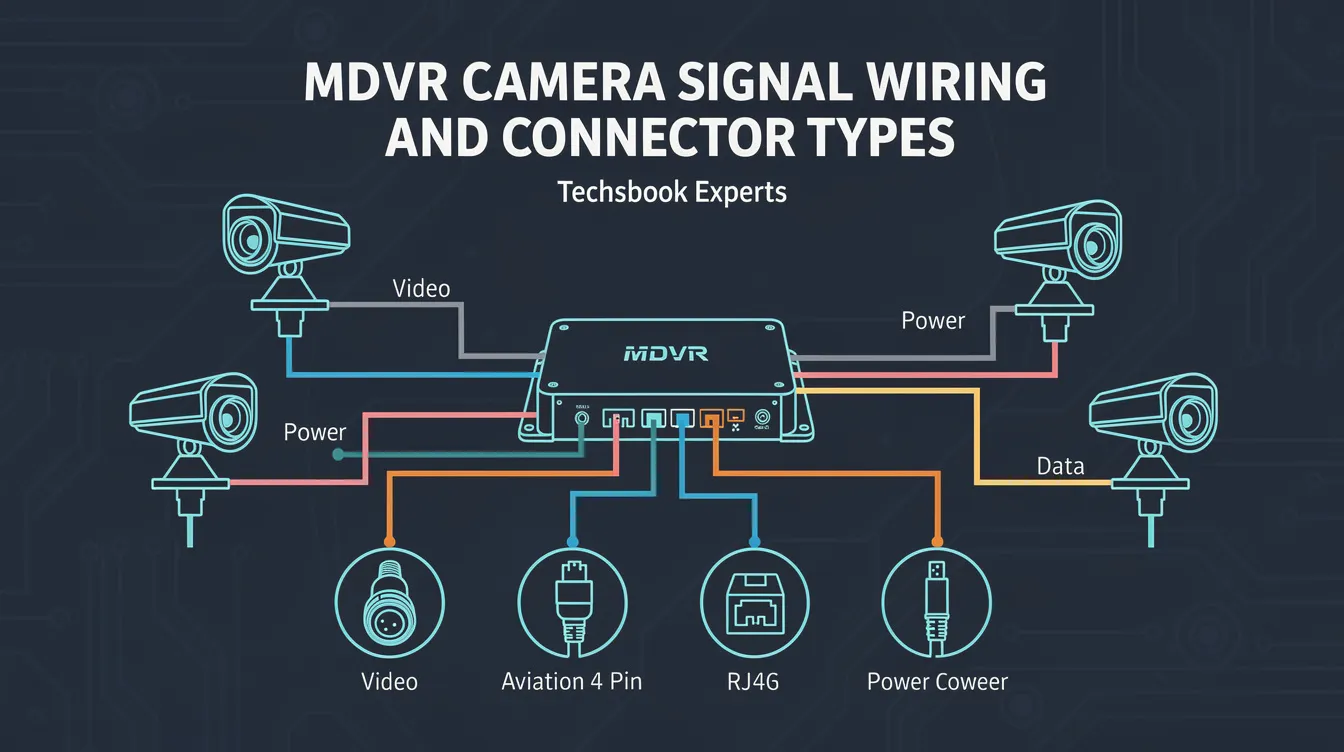

MDVR Camera Signal Wiring and Connector Types
Aviation Mini-DIN Connectors
Every commercial-grade MDVR uses aviation-type mini-DIN connectors for camera connections. These circular, locking connectors carry video signal, audio, and 12V camera power on a single cable — eliminating the need for separate power runs to each camera location.
The locking ring is critical for vehicles. Vibration on trucks and buses will work a standard BNC or RCA connector loose within months. The aviation connector’s mechanical lock prevents this. It is one of the reasons commercial MDVR camera installations remain reliable where consumer dashcam installations fail.
The most common failure point is not the connector body itself — it is the termination inside the housing, where the cable is crimped or soldered to the pins. If a camera image flickers when you flex the cable near the connector, the termination is failing. This is field-fixable with the correct crimping tool.
AHD vs CVBS Camera Signal
The MDVR and its cameras must use compatible signal formats. Mismatched formats produce color distortion, washed-out images, or a completely black screen — not a broken camera.
- AHD (Analog High Definition): Current standard across most fleet MDVR systems. Supports up to 2MP / 1080p resolution. Cable runs of up to 30 meters with standard coaxial cable without signal degradation. Compatible with the majority of cameras in the commercial vehicle market.
- CVBS (Composite Video): Older analog format still found in legacy systems and some budget units. Lower resolution ceiling, narrower color gamut. Still functional, but not the ideal choice for new deployments.
Always configure the DVR channel settings to match the camera format connected to that channel. The DVR does not auto-detect in most cases.
Camera Channel Assignment
Each camera connects to a numbered channel input on the DVR — CH1, CH2, CH3, and so on. Channel assignment affects how footage is labeled in the fleet management platform and on local playback. Mislabeled channels create real confusion during incident investigations when a fleet manager is trying to locate the front camera footage and the label says “rear.”
Standard assignment for most fleet vehicles:
- CH1 → Front-facing road camera
- CH2 → Driver-facing camera
- CH3 → Driver-side exterior camera
- CH4 → Rear camera
- CH5–CH8 → Additional cameras (passenger side, trailer, cargo interior)
Document the channel assignment on the job report before closing up the vehicle.
Cable Routing Rules to Prevent Signal Interference
Keep camera signal cables physically separated from ignition wiring, power feeds, and any high-frequency electronics by at least 100mm. When camera cables and power wires must cross, route them at 90 degrees — never parallel. Running camera cables parallel to ignition or alternator wiring couples electrical noise into the video signal, producing horizontal banding on the camera image.
This is the most common cause of interference lines on MDVR footage and the most preventable. It costs nothing to route cables correctly during installation. It costs hours to diagnose and correct after the fact.
Ground Connection — How to Do It Right
Follow this sequence exactly for every MDVR ground connection:
- Identify a bare metal chassis point near the DVR mounting location
- Clean the surface with coarse sandpaper to remove paint, coating, or oxidation
- Use a star (serrated) washer under the ground ring terminal — the teeth cut through any remaining surface oxidation and ensure metal-to-metal contact
- Torque the bolt firmly — a loose ground connection works initially, then fails progressively as vehicle vibration loosens it over weeks and months
- Verify with multimeter: resistance between your ground point and any other chassis ground must be under 0.5Ω
- Apply dielectric grease over the completed connection to prevent future oxidation
If you see all camera channels develop simultaneous horizontal banding or hum bars — that is a ground fault. It does not look like a single-channel camera problem. It affects every channel with live signal at once.
Ground Loop Interference — Cause and Fix
What Ground Loop Is
A ground loop occurs when two parts of the circuit that should share the same ground potential are actually at slightly different voltages. Current flows through the camera signal cable as the equalizing path between those two points. The result is a slowly moving horizontal band across the camera image — visible both on the monitor and in recorded video files.
Ground loop distinguishes itself from other faults by affecting multiple channels simultaneously. A single failed camera affects one channel. A ground loop affects every camera sharing the affected ground path.
Common Ground Loop Sources in MDVR Installations
- External cameras whose metal bodies make contact with the vehicle chassis through mounting brackets — this creates a second ground path through the camera signal cable
- DVR grounded at one chassis location while camera cable shields terminate at a different location with different ground potential
- New vehicle accessories installed after the MDVR — added accessories that share ground paths can introduce loop conditions into a previously clean installation
How to Fix Ground Loop
- Mount external cameras with plastic isolation washers between the camera body and the mounting bracket — this breaks the unintended ground path
- Verify that the DVR has a single, dedicated ground connection — not multiple ground points
- Add a ferrite choke to the camera cable at the DVR input end — this suppresses high-frequency interference without requiring rewiring
- If the problem appeared after adding a new accessory, add a ferrite choke to that accessory’s power cable first
SD Card, HDD, and Storage Wiring Considerations
The MDVR’s internal storage — whether an SD card, HDD, or SSD — connects internally to the DVR unit’s motherboard. There are no external storage wiring connections that the installer manages directly. However, storage affects two installation decisions that involve wiring.
Power supply quality affects storage reliability. An HDD operating on a noisy or undervoltage power supply degrades faster and produces more read/write errors. A correctly wired constant power line — properly fused, routed away from interference sources, and connected to a clean chassis ground — directly extends storage lifespan.
Storage capacity determines footage retention before loop recording overwrites files. A 4-channel system recording at 1080p H.265 fills 1TB HDD in approximately 10–15 days. When choosing storage:
| Storage Type | Capacity | Use Case | Notes |
|---|---|---|---|
| SD card | Up to 256GB | Light vehicles, short-term retention | Annual replacement recommended |
| HDD | 500GB–2TB | Standard fleet (vans, trucks, buses) | Vehicle-grade shock-resistant required |
| SSD | 128GB–4TB | Construction, off-road, high vibration | No moving parts — best durability |
| Buses, trucks, and commercial vehicles with high daily mileage should prioritize HDD or SSD over SD card. The continuous vibration of extended highway operation degrades SD cards faster than their rated endurance suggests. |
GPS Antenna Wiring for MDVR Systems
GPS Antenna Cable Routing
The GPS antenna connects to a dedicated port on the DVR unit — typically labeled GPS ANT. Do not share this port with any other connection. Route the GPS antenna cable away from power wiring and 4G antenna cables. Running GPS cable parallel to power wiring induces electrical noise that reduces GPS signal quality and extends lock acquisition time.
The maximum recommended cable run for passive GPS antennas is 3–5 meters. Do not coil excess cable — a tight coil acts as an induction loop and degrades signal. Route away from the windshield defroster grid, which operates at a frequency that interferes with GPS reception.
GPS Antenna Position Options
| Position | Signal Quality | Notes |
|---|---|---|
| External roof mount | Excellent | Best choice — requires sealed body penetration |
| Dashboard internal | Good | Affected by metallized or tinted glass |
| Under-dash internal | Poor | Metal dashboard blocks sky view in most vehicles |
| The GPS module records real-time location data synchronized with video footage — including vehicle speed, heading, and route history. This synchronization is what makes MDVR video evidence so powerful in disputes and insurance claims: the footage shows what happened, while the GPS data confirms exactly where and at what speed. Under-dash mounting degrades this capability significantly in cab-over truck configurations. |
Confirming GPS Lock
After power-on, allow 30–90 seconds for GPS lock acquisition in open sky. If lock takes more than 3 minutes, recheck antenna position and cable routing. Verify correct coordinates appear in the DVR status screen or fleet platform before closing up the vehicle. A system left the shop without GPS lock confirmation is a system that may deliver footage without location data when it matters.
→ See the full overview in MDVR systems explained for a complete guide on storage capacity and video retention options.

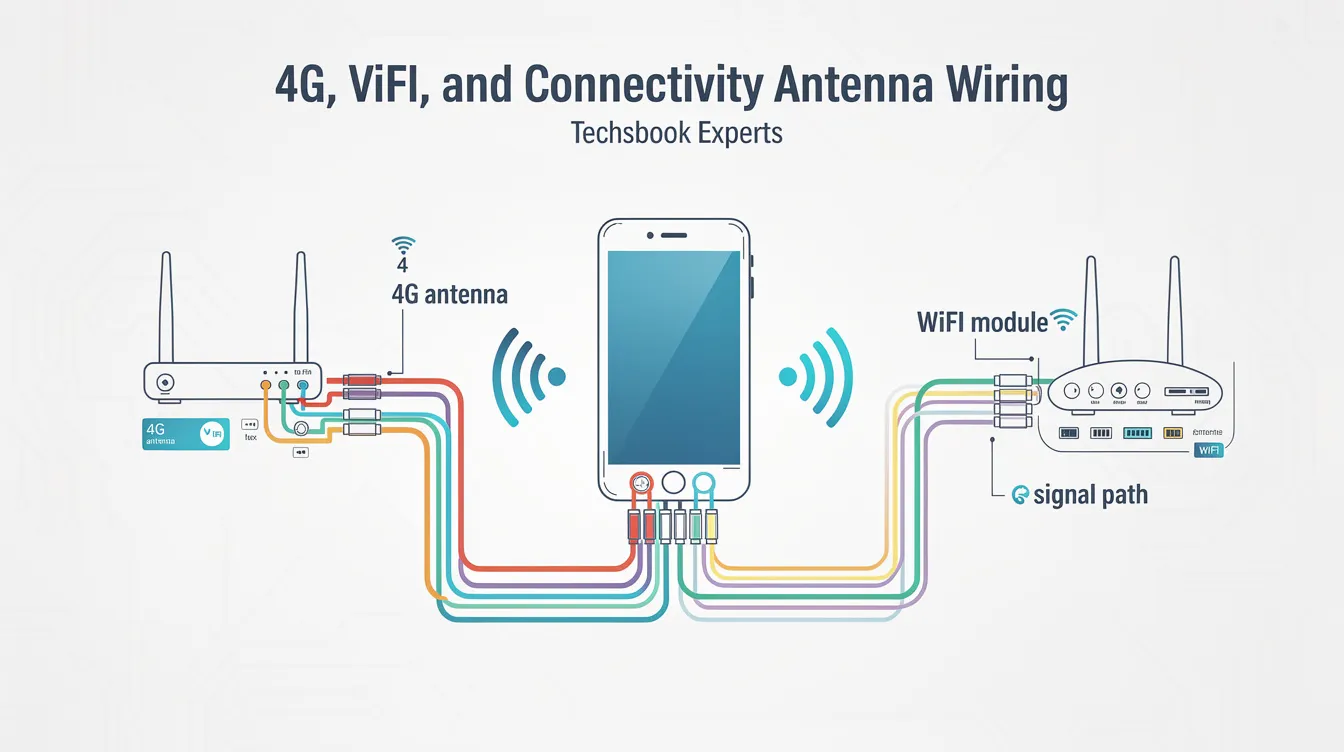

4G, WiFi, and Connectivity Antenna Wiring
4G Antenna Installation
The 4G antenna connects to the SMA port on the DVR unit. Mount the antenna at minimum 200mm from the GPS antenna to prevent cross-band signal interference. Use the roof or the top of the cab where a metal ground plane behind the antenna improves signal radiation efficiency.
Route the 4G cable through the same physical channel as the GPS cable, but maintain physical separation between the two cables. After SIM card activation, confirm the unit connects to the management platform and that real-time video streaming or event uploads are functioning before finishing the install.
WiFi Antenna Considerations
MDVR units with WiFi support use it primarily for depot-based footage synchronization — the vehicle connects to the yard WiFi when returning to base, and video files upload automatically without requiring manual SD card retrieval. WiFi antenna placement follows the same rules as 4G: external mounting at the top of the cab with clear line-of-sight to the access point produces the most reliable connections.
Through 4G/5G connectivity, fleet managers can view live, multi-angle video feeds of vehicles remotely, along with real-time GPS location tracking. Units with cloud connectivity provide encrypted and tamper-proof storage, protecting video evidence against loss or tampering. This is the operational foundation of real-time fleet monitoring for trucks, buses, and commercial vehicles of all types.
Mobile DVR Wiring Sequence — Step-by-Step Order
The order of operations matters. Connect things in the wrong sequence and you risk introducing power to a partially wired system. Follow this sequence:
- Route constant power wire from fuse box to DVR — add inline fuse within 18 inches of source
- Identify and verify ACC source with multimeter — confirm clean switching before tapping
- Route ACC wire from source to DVR location
- Run ground wire to nearest clean chassis ground — shortest path, verified under 0.5Ω
- Route camera cables from DVR to each camera mounting position — terminate connectors before routing through panels
- Route GPS antenna cable from antenna position to DVR GPS port
- Route 4G antenna cable if the unit is equipped
- Connect all harness wires to DVR — power connections last
- Power on with panels still open — test before closing up
- Verify all camera channels show live video, GPS lock is acquired, platform is online
- Install all trim panels and close up the vehicle
- Final full system test — drive briefly, trigger G-sensor with firm braking, retrieve event clip, verify timestamps and GPS data
→ See: How to Install an MDVR System Step-by-Step for the full installation process
Pro Tips From Certified MDVR Installers
Never splice into airbag circuits. Yellow or yellow-striped wiring near the A-pillars, steering column, and under-dash areas is airbag system wiring. Identify it, mark it, and route everything else around it. Accidental airbag deployment during a camera or power wire installation is not a hypothetical scenario.
Label every wire at both ends before routing. Use flag labels or colored electrical tape. Two years from now, a technician servicing this vehicle needs to know which black wire is the MDVR ground and which is a camera signal return. Unlabeled wiring turns a 20-minute diagnostic into a 2-hour trace.
Test cable continuity before closing panels. Set the multimeter to continuity mode and test each camera cable conductor end-to-end before reinstalling trim. A bad crimp found in the open takes 5 minutes to fix. The same fault found through a closed door panel takes significantly longer.
Document the ACC source location on the job report. Vehicle service technicians working on unrelated repairs should not accidentally disconnect the MDVR’s ACC tap. Document which circuit was used and where the tap is located. This protects the installation and ensures future service work does not introduce a wiring fault.
→ See: Common MDVR Installation Mistakes for the complete list of installation errors and their consequences
