Choosing the right MDVR storage options is one of the most consequential decisions a fleet manager makes when deploying mobile video surveillance. These storage options are part of a broader set of accessories—such as MDVR units, GPS trackers, and telecommunication tools—that enhance vehicle functionality and safety.
The storage configuration you select directly determines how many days of recorded footage you can retrieve, how reliably the system captures critical incidents, and what your ongoing costs look like for maintenance and data. This guide compares SD card vs HDD vs SSD vs cloud storage specifically for fleet operators configuring mobile DVR systems across commercial vehicles, highlighting how customers and users benefit from selecting the right MDVR storage options for their fleet management needs.
Key Takeaways
- SD card storage suits light-duty fleets or backup redundancy, offering 2–7 days retention on 256GB but requiring annual replacement due to write fatigue
- HDD storage delivers 15–30+ days on 1TB at reasonable cost, but requires vehicle-grade specifications (100–400G shock rating) and fails quickly in construction or off-road applications
- SSD storage provides superior shock resistance for harsh environments at 3–5x the cost of HDDs, making it essential for mining, refuse, and rough-terrain fleets
- Cloud storage works best as a complement to local storage, uploading event clips via 4G/5G while local drives maintain full multi-channel archives
- H.265 compression effectively doubles retention compared to H.264 on the same drive, and G-sensor lock protects crash footage from cyclic overwriting
Understanding MDVR Storage Basics

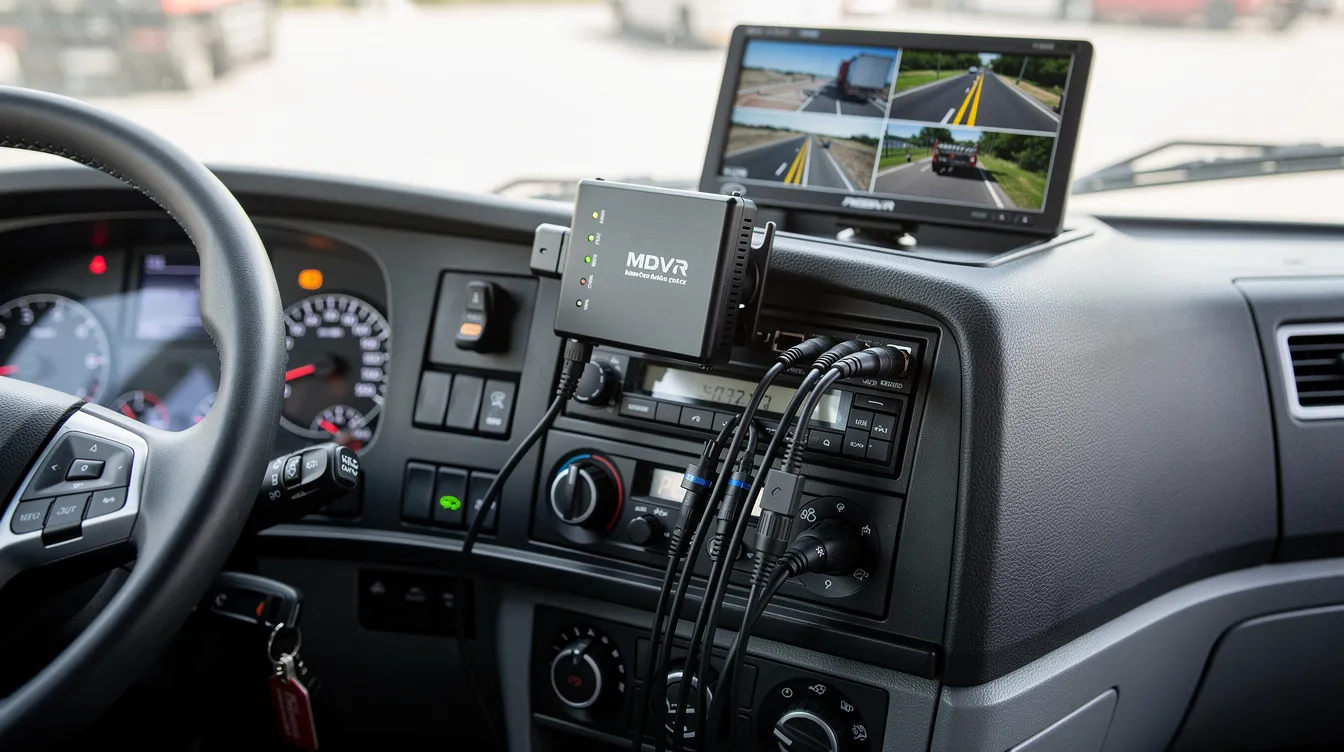

An MDVR (Mobile Digital Video Recorder) is a ruggedized video recorder deployed in commercial fleets including trucks, buses, vans, school buses, and construction vehicles. These systems are specialized equipment designed for commercial vehicle use, built for durability and reliability in challenging environments. While cameras and connectivity get attention, storage configuration is often the real make-or-break factor for usable video evidence. Poor storage choices contribute to data loss in 20–30% of crash reconstructions according to telematics industry reports.
Local storage in an MDVR system means physical media installed inside the device—typically SD cards, 2.5-inch HDDs, 2.5-inch SSDs, or occasionally eMMC modules. These drives store the MDVR record, which includes not only continuous video recording from multiple channels but also vehicle data such as GPS location, speed, and driver behavior. This information is securely stored for later review, supporting both safety and operational analysis.
Typical recording loads:
- 4 channels at 1080p, 12–15 fps: approximately 25–40 GB/day at 10–12 hours driving
- 8 channels at 1080p, 12–15 fps: approximately 60–80 GB/day
- Continuous 24/7 depot-based recording (buses): 50–100 GB/day for 4 channels
Recording modes significantly impact storage capacity requirements. Continuous recording captures everything, while event-based recording triggers only on G-sensor hits, harsh braking, or ADAS alerts—slashing usage by 70–90% but risking gaps. MDVRs are capable of multi-angle synchronized recording, which is critical for accident investigation and safety improvement by capturing road conditions, driver behavior, and vehicle speed. Most fleet-grade MDVRs since 2022 support both H.264 and H.265 codecs, with H.265 providing 30–50% smaller files at equivalent quality.
Storage design is fundamentally a risk decision. The ability to record and store high-quality video and audio acts as a deterrent against criminal activities and provides crucial evidence for investigations. Undersized drives mean inability to produce footage within the 30–90 day windows insurers and regulators often require, with data loss cited in 15% of denied insurance claims.
SD Card Storage in MDVR Systems
SD and microSD cards represent the lightest-duty MDVR storage option, commonly deployed in 1–4 channel dashcam-derived systems as either primary storage or backup redundancy alongside HDDs. Compared to other mdvr storage options like HDD or SSD, sd storage is typically used in dashcams and compact MDVR setups due to its smaller capacity and high vibration resistance, but it is limited in storage space and endurance for constant recording. For fleets relying on forward-facing cameras, pairing the right SD media with a dedicated fleet dashcam solution is critical to balance video quality, retention, and reliability.
Capacity ranges: Most professional MDVRs support 64GB to 512GB microSD cards, with 1TB emerging in 2024+ models. Typical fleet deployments use 128GB or 256GB cards to balance cost and replacement frequency.
Realistic retention examples (4-channel 1080p, H.265, 12fps, ~10–12 hours/day):
- 128GB: approximately 2–4 days
- 256GB: approximately 4–7 days
- 512GB: approximately 8–14 days
Consumer microSD cards are not designed for constant write cycles in vehicle environments. Vibration fatigue and thermal stress cause 20–30% annual failure rates in fleets using standard cards. Industrial high-endurance cards (SanDisk High Endurance, Samsung PRO Endurance) rated for -25°C to +85°C and 1000–5000x write cycles are mandatory for reliability. SD cards are suitable for smaller, compact setups and are highly vibration-resistant, but have limited storage space and lower endurance for constant recording.
Maintenance guidance: Budget to replace SD cards every 12–18 months in continuous recording fleets. Log replacement dates per vehicle to catch silent card failures before critical footage is lost. For SD card-based MDVR systems, best practices recommend using High Endurance cards to sustain continuous rewriting and maximize reliability.
When SD card storage is a good fit:
- Sales fleets and pool cars with short daily routes
- Urban delivery vans needing only 2–7 days retention
- As secondary backup alongside HDD/SSD primary storage
- Vehicles with limited mounting space
Cons: Capacity ceiling limits retention to under 10 days even at 512GB for 8-channel systems. Card corruption increases significantly if drivers eject cards daily for ad-hoc exports.

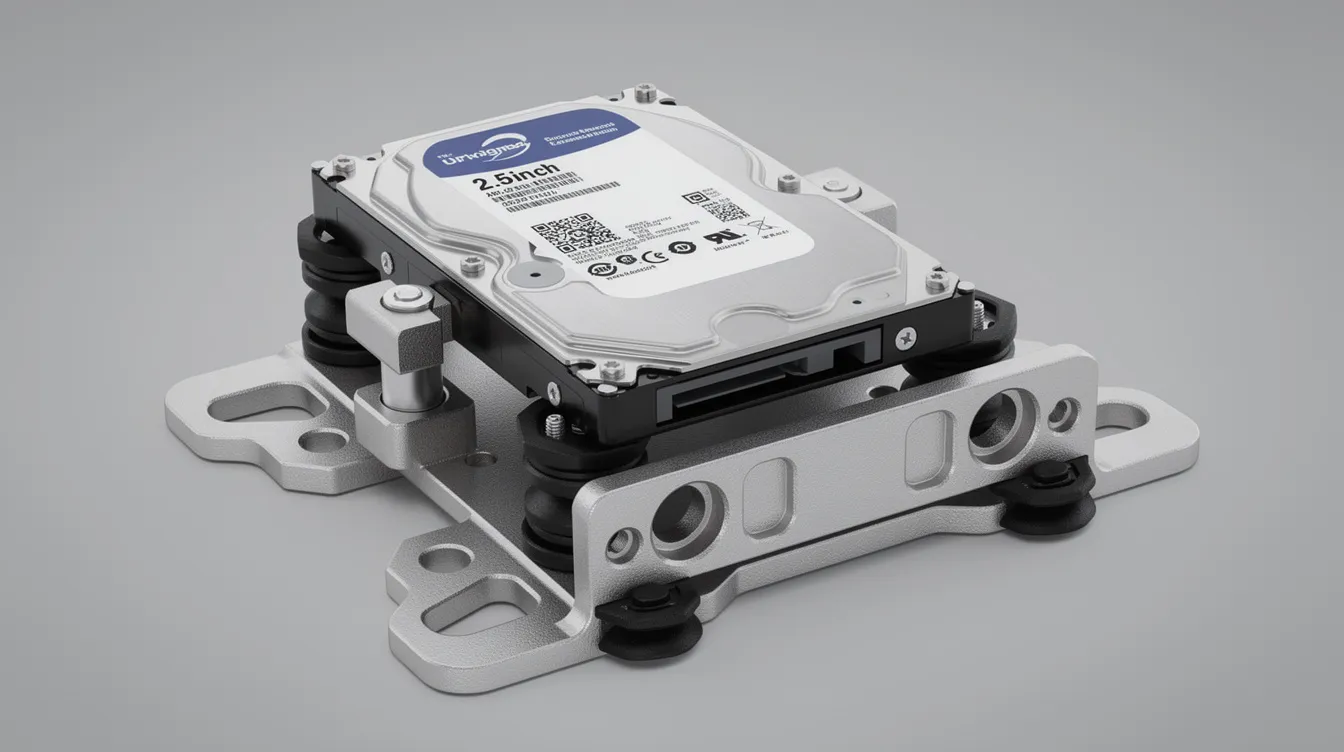

HDD Storage: High Capacity With Moving Parts
2.5-inch HDDs remain the traditional workhorse for MDVR storage in 4–8 channel systems requiring weeks of local retention at the lowest cost per terabyte. When combined with a fleet monitoring app for real-time tracking and analytics, HDD-based MDVRs can provide both long-term video archives and live operational insights from the same telematics stack.
Critical specification: Only vehicle-grade or surveillance-grade HDDs with 100–400G operating shock tolerance should be installed. Retail laptop HDDs fail 40–60% faster in mobile applications due to head crashes from potholes and axle vibration.
Common capacities: 500GB, 1TB, and 2TB, with 1TB representing the 2024–2026 sweet spot for cost versus retention.
1TB HDD Retention Estimates
| Configuration | Codec | Approx. Days |
|---|---|---|
| 4ch 1080p, 10hr/day | H.264 | 14–18 days |
| 4ch 1080p, 10hr/day | H.265 | 25–30 days |
| 8ch 1080p, 10hr/day | H.264 | 7–10 days |
| 8ch 1080p, 10hr/day | H.265 | 12–18 days |
| Note: Estimates assume moderate bitrates and typical motion levels. Actual retention varies by scene complexity and frame rate. |
Mounting matters: HDD-based MDVRs must be installed on solid surfaces using manufacturer anti-vibration brackets, positioned away from engines and axles. Poor installation leads to head crashes and premature drive death—I’ve seen 25–35% failure rates in buses mounted near wheel wells.
Environments to avoid HDDs: Off-road, mining, quarry, construction, refuse collection, and city buses on severely degraded roads where sustained vibration exceeds 2.5-inch HDD tolerances.
Installer tip: Always verify the MDVR spec sheet lists your chosen HDD model as approved. Mixing unapproved drives often voids warranties and creates support headaches when failures occur.
SSD Storage: Solid-State Reliability for Harsh Fleets
SSDs use flash-based storage with no moving parts, making them highly resistant to shock and vibration. For fleets operating in harsh environments where HDDs fail within months, SSDs provide the operational efficiency and reliability that justify their premium cost.
Vehicle MDVRs typically accept 2.5-inch SATA SSDs or M.2 modules depending on model. Fleet managers should specify industrial- or automotive-grade SSDs rated for -40°C to +85°C and high write endurance (10,000–100,000 P/E cycles). In-cab cameras feeding a driver monitoring system for distraction and drowsiness detection particularly benefit from SSD reliability, since missed frames during critical events undermine both safety and compliance.
Pricing reality (2025–2026): A 1TB industrial SSD costs roughly 3–5x a comparable vehicle-grade HDD. Common MDVR deployments use 256GB, 512GB, or 1TB SSDs, with some high-end systems supporting 2TB.
Key advantages:
- Withstands 1000G+ shock and 20G+ sustained vibration
- Under 5% annual failure rate versus 15–20% for HDDs in harsh applications
- Faster boot times and file access for forensics
- Tolerates frequent power cycles and short circuit recovery better than HDDs
When SSD is worth paying for:
- Dump trucks and tippers in quarries
- 4×4 off-road service vehicles
- Refuse and recycling trucks
- City buses on very rough routes
- Hazmat transport where losing footage creates regulatory exposure
Many fleets now mix storage types: SSDs for front-line vehicles on harsh routes, HDDs for highway tractors and coaches on smoother roads. This hybrid approach balances reliability and budget across the fleet, and long-haul operators often complement MDVRs with a purpose-built dashcam for truckers to capture forward-facing evidence and advanced safety alerts on interstate routes.
Cloud Storage & 4G/5G Upload: Local vs Remote Footage
Cloud storage for MDVRs means remote servers accessed via 3G/4G/5G cellular connectivity, typically managed through a fleet video telematics platform. This enables real time video streaming and offsite backup but comes with bandwidth constraints that make it impractical as a standalone solution. Many operators tie MDVR cloud uploads into a broader fleet monitoring app with live tracking and alerts so video, GPS, and diagnostics all flow through a single interface.
Upload strategies:
- Event-triggered: Only clips around harsh braking, collisions, or DMS alerts (30–120 second windows, 50–200MB per incident)
- Continuous/scheduled: Full footage offloaded via depot Wi-Fi at end of shift
Data consumption realities:
- Live view substream at 200–300 kbps: ~90–130 MB/hour
- Full-quality 1080p at 2 Mbps: ~0.9 GB/hour per channel
- 8-channel full upload: ~7 GB/hour (impractical over cellular)
Platform costs: $15–40 USD per vehicle monthly including SIM data and 30–90 day cloud retention for event clips.
Advantages: Offsite backup protects against MDVR theft or vehicle fire, provides instant access from the office for insurers and law enforcement, and supports central retention policies.
Limitations: Reliance on cellular coverage creates upload gaps in weak-signal areas. Cross-border data security requirements add compliance complexity for international fleets.
Best practice: Configure local storage for 7–30 days retention and automatically upload only incident clips (G-sensor triggers, panic buttons, ADAS/DMS alerts). Reserve 10–20% of local storage space for locked emergency files.
H.264 vs H.265: Compression and Storage Savings
Both H.264 and H.265 are video compression standards supported by modern MDVRs, with H.265 (HEVC) typically producing 30–50% smaller files at equivalent visual quality.
This doesn’t add storage capacity—it effectively extends usable retention on the same drive. If 1TB with H.264 provides roughly 14 days for an 8-channel system, switching to H.265 at similar quality might extend that to 21–28 days.
Trade-offs: H.265 requires more processing power on the MDVR for encoding and slightly more demanding playback software. Fleets should confirm their CMS and desktop tools fully support HEVC before enabling it across vehicles.
Some MDVRs allow per-channel codec selection: H.265 for road-facing 1080p cameras and H.264 for lower-resolution interior cameras. This balances quality, CPU load, and storage consumption.
G-Sensor Lock and Protecting Critical Footage
The MDVR’s G-sensor (3-axis accelerometer) detects high-impact events—crashes, severe potholes, harsh braking above configurable thresholds (typically 0.6–2G)—and automatically flags those time windows as locked.
Locked files are moved to a protected partition or marked in the file system so normal cyclic overwriting skips them. Without proper G-sensor configuration, your most critical crash footage gets overwritten before claims are even filed.
Protection triggers typically include:
- G-sensor impacts above threshold
- Manual panic button presses
- ADAS lane departure or collision warnings
- DMS drowsiness or distraction alerts
Locked clips often chain to 4G upload, providing immediate cloud backup of incidents.
Commissioning requirement: Test G-sensor behavior during setup installing with controlled hard brake tests. Verify locked footage appears correctly in the CMS portal. Budget 5–10% of storage capacity as headroom for locked files so they aren’t squeezed out when drives approach full capacity.
Planning MDVR Storage Retention for Your Fleet
Retention means the number of days of historical video data you can reliably retrieve per vehicle. This must be planned backward from policy and legal requirements, not forward from hardware you happen to have.
Step-by-step framework:
- Determine investigation window (insurer or internal policy: 30, 60, or 90 days post-incident)
- Estimate daily recording hours per vehicle (8, 12, or 20 hours)
- Count active camera channels (4 vs 8) and resolutions (720p vs 1080p)
- Choose codec (H.264 vs H.265) and approximate bitrate
- Use vendor calculator to map required days to drive size
Example scenario: A 6-truck regional delivery fleet with specific needs including 6 channels per vehicle, 1080p, H.265, 12 hours daily operation, targeting 30-day retention. Daily consumption: approximately 50GB. Required storage: minimum 1.5TB. Solution: 512GB SSD per vehicle (sufficient for aggressive H.265 compression) plus cloud event uploads for offsite backup and extended retention of incidents.
If your HR or safety team investigates complaints up to 45 days back, target at least 50–60 days of retention capacity to account for slow reporting and weekends.
Choosing the Right Storage Option for Common Fleet Scenarios
No single MDVR storage choice fits all fleets. The optimal configuration depends on usage patterns, road conditions, incident reporting timelines, and budget.
Urban delivery vans (2–4 cameras, 8–10 hours/day, 7–14 days retention): High-endurance 256–512GB SD or small SSD plus event-based cloud. HDDs viable if routes are smooth.
Long-haul trucks on highways (4–8 cameras, 10–14 hours/day, 30–45 days retention): 1TB vehicle-grade HDD with H.265 enabled, cloud upload for incidents. This balances cost and capacity for commercial fleets on smooth roads.
Construction, mining, or refuse (4–8 cameras, rough terrain, 8–12 hours/day): 512GB–1TB industrial SSDs mandatory. Avoid HDDs entirely—field failure rates approach 50% in year one.
School buses or public transport (strict 60–90 day complaint windows): 1–2TB HDD or SSD depending on road quality, H.265 compression, robust G-sensor and panic workflows, limited continuous cloud upload for regulatory compliance.
Mixed strategies are common: core fleet on HDD, high-risk routes on SSD, all vehicles with cloud event backup. The trade-offs come down to cost versus reliability versus retention versus recurring data charges—evaluate each vehicle class independently, and ensure your fleet telematics installation process is standardized so storage choices and camera layouts are implemented consistently across all vehicles.
Techsbook Installation, Support and Next Steps
Techsbook technicians regularly encounter storage-related failures during callouts: corrupted SD cards from heat cycles, under-sized HDDs that overwrote crash footage, H.264 defaults that halved retention unnecessarily. Correct specification up front avoids most of these issues.
What Techsbook technicians deliver: Leveraging Techsbook’s telematics installation platform for nationwide deployments and its direct booking workflow to schedule installs quickly, these technicians make sure your MDVR storage plan is executed accurately on every vehicle.
- Assess fleet routes, vehicle types, and safety policies
- Recommend SD vs HDD vs SSD plus cloud strategy per vehicle class
- Configure H.265, G-sensor thresholds, and recording profiles
- Install and mount MDVRs to meet shock and temperature requirements
- Train fleet managers on retrieving and exporting locked footage
- Provide MDVR support to assist fleets in maintaining compliance records and safety documentation, which is essential for audits and regulatory inspections in highly regulated industries, while Techsbook’s telematics technician marketplace and customer platform for managing technicians and jobs help standardize service quality and oversight
Techsbook technicians spec and install the right MDVR storage configuration for your fleet size and retention requirements. → Book a certified MDVR installer
Related MDVR Resources
For deeper coverage of MDVR system architecture, camera selection, and troubleshooting:
- MDVR Systems Complete Guide – Full overview of mobile DVR architecture, GPS tracking, connectivity, and key features
- MDVR Camera Types and Placement for Fleets – Selecting and positioning more cameras for road-facing, side, and in-cab coverage
- MDVR Not Recording? Step-by-Step Diagnostics – Troubleshooting when your MDVR system stops recording or overwrites too quickly
Storage is only one part of a complete MDVR deployment—cameras, power management, and real time monitoring configuration all contribute to system reliability.
FAQ
These questions address common concerns beyond the main narrative, including exact retention calculations and whether cloud alone is sufficient for commercial fleets.
What is the difference between an MDVR and a dashcam?
MDVR systems are designed for commercial vehicle use, empowering users such as fleet operators to take control of their monitoring and surveillance activities. In contrast, dashcams are primarily intended for personal vehicle owners. A standard dashcam typically supports 1-2 cameras, while MDVR systems can support 3-16 cameras simultaneously, allowing for comprehensive coverage of the vehicle’s surroundings—including trailers and other cargo areas. MDVR systems are built to withstand harsh environmental conditions and are often rated IP67/IP68 for water and dust resistance, unlike standard dashcams. Additionally, MDVRs typically offer advanced features such as real-time video streaming and GPS tracking, which are not commonly found in standard dashcams.
How does multi-channel recording work in MDVR systems?
MDVR systems provide multi-channel recording capabilities, allowing for synchronized footage from multiple angles. This is essential for comprehensive incident analysis in commercial fleets, as users can review footage from all cameras—including those mounted on trailers—at the same time.
What advanced features do MDVRs offer compared to dashcams?
MDVRs offer a range of advanced features that go beyond basic video recording. Additionally, many MDVRs integrate Advanced Driver Assistance Systems (ADAS) and driver monitoring system (DMS) technology. The driver monitoring system uses in-cabin cameras and AI to assess driver behavior in real-time, helping to prevent accidents and enhance safety. DMS is often integrated with other systems like ADAS and MDVR, and recent advancements have made this technology more affordable and effective. ADAS integrated into MDVRs are capable of detecting potential collisions, lane departures, and traffic signs, enhancing vehicle safety. These features help users improve safety and compliance across their fleets.
How does real-time monitoring benefit commercial fleets?
Real-time monitoring capabilities of MDVRs allow fleet managers and users to access live video feeds remotely, enhancing operational efficiency and enabling immediate responses to emergencies or suspicious activities. MDVRs also provide valuable insights and data, including GPS tracking and vehicle performance metrics, which can be used to analyze driver behavior and improve overall safety and efficiency in fleet operations.
What are the risks of not using MDVR in commercial fleets?
Without MDVR, commercial fleets face increased risks such as accident liability, insurance disputes, and unsafe driving behaviors that often go unmonitored. MDVR systems empower users to maintain control over their fleet’s safety, security, and compliance through comprehensive monitoring and data management.
How long does MDVR footage last on a 1TB drive?
On H.265 with four 1080p cameras at moderate bitrates and approximately 10 hours/day driving, 1TB typically stores around 25–35 days. With eight 1080p channels, expect approximately 12–20 days. H.264 reduces these figures by 30–40%. Actual days depend heavily on codec, bitrate, frame rate, motion level in scenes, and daily active hours. Treat vendor calculations as best-case and leave 10–20% safety margin for high-traffic days or audio recording additions.
What is G-sensor lock on an MDVR?
G-sensor lock is the automatic protection of video files when the MDVR detects sudden impact, harsh braking, or rollover via its built-in accelerometer. Locked segments are flagged so normal loop recording doesn’t overwrite them, and many systems simultaneously upload these clips to cloud storage. Fleets should test and tune G-sensor sensitivity so real collisions always trigger locks while normal speed bumps don’t generate excessive false events.
Is cloud storage enough without local MDVR storage?
For most commercial fleets, cloud alone is insufficient. Bandwidth constraints and data costs make full-time multi-channel upload impractical—8 channels at 2Mbps consumes approximately 7GB per hour. Local SD/HDD/SSD provides complete high-resolution archives accessible after incidents, while cloud handles critical events and offsite backup. A cloud-only approach might work for very low-camera-count setups with excellent connectivity, but creates unacceptable risk for fleets needing multi-angle evidence for accidents or fraudulent claims.
How often should MDVR storage media be replaced?
Replacement intervals vary by media type: SD cards may need replacement every 12–18 months in continuous recording fleets, HDDs typically every 3–5 years if vehicle-grade and properly mounted, and industrial SSDs often exceed 5 years depending on write load. Implement proactive replacement schedules and periodic health checks (SMART diagnostics) rather than waiting for failures. High-duty or off-road fleets should be more conservative as harsh temperature cycles and vibration accelerate wear.
Can I mix different storage types across my fleet?
Yes, mixing SD, HDD, and SSD across vehicle classes is common and often optimal. Many fleets standardize on one MDVR platform and then specify HDDs for highway tractors and coaches (smooth roads, high capacity needs), SSDs for rough-service vehicles (construction, refuse, buses on various industries routes), and SD-only for light-duty or pool cars. Document chosen storage type, capacity, and replacement intervals by vehicle class in your fleet asset register to simplify fleet management and budgeting.
