How to Fix MDVR Camera Signal Issues: Installer Diagnosis Guide

Understanding how to fix MDVR camera signal issues requires a clear and systematic approach rather than guesswork. Most problems come from a few common sources such as damaged cables, loose connectors, power supply issues, or incorrect DVR settings.

This guide on how to fix MDVR camera signal issues follows a practical installer-level method. By tracing the full signal path and checking each point step by step, signal faults can be identified and fixed quickly. A structured diagnosis not only saves time but also ensures your MDVR system captures clear and reliable footage when it matters most.

Key Takeaways

• MDVR camera signal issues typically trace back to four areas: cable damage, connector faults, camera power supply failure, or DVR channel configuration mismatch. Always ensure all components are compatible to avoid signal decoding or resolution support issues.
• Proper diagnosis follows the video signal path systematically: camera sensor → coax cable → aviation/BNC connector → MDVR channel input → MDVR software settings.
• Interference from vehicle electronics (alternators, inverters, ignition systems) shows as rolling bars or noise—not total black screens.
• Unresolved signal problems create serious legal and insurance risk when collision footage is missing or unusable.
• A methodical, signal-path approach achieves 85% first-fix rates in under 45 minutes per channel. Practical solutions include checking physical connections, verifying SIM card functionality, inspecting antenna positioning, and updating firmware.
• Using a surge protector or uninterruptible power supply (UPS), along with placing a block of wood as a physical barrier, can help protect CCTV cameras and MDVR systems from electrical surges and power outages, safeguarding your MDVR system’s power supply.

Introduction: How to Fix MDVR Camera Signal Issues

Understanding how to fix MDVR camera signal issues is essential for any technician or fleet manager dealing with commercial vehicle video systems in 2024–2026. Mobile Digital Video Recorders capture continuous footage from multiple cameras across trucks, buses, vans, and trailers—supporting driver safety, incident reconstruction, and regulatory compliance, and they often complement fleet dashcam systems with GPS tracking for broader telematics coverage. As part of the broader security camera landscape, including CCTV cameras, the recorder (DVR or NVR) is the central device responsible for managing and storing video footage in these systems, making proper signal transmission crucial. When one channel goes dark or shows distortion, the entire system’s value drops significantly.

Common symptoms include “No Signal” on a single channel, a black screen with OSD overlay still visible, flickering video, rolling horizontal lines, or intermittent loss when the vehicle hits bumps. Users often notice these issues through the display or monitor, which may show no video or distorted images. Screen issues, such as abnormal display or no output, can also indicate problems with the recorder or display hardware. This guide assumes an AHD/analog MDVR system using coax or 4-pin aviation connectors—not IP/NVR setups. We’ll walk through systematic signal-path diagnosis from camera head to DVR settings, with field-practical tests and clear decision points to provide solutions for users facing these issues.

Understanding the MDVR Video Signal Path

Every MDVR video issue can be located somewhere along a predictable path:

Camera → Cable → Connector → MDVR Channel Input → MDVR Settings → Monitor Cable → Video Output

A typical 4-channel AHD system flows like this:

CAM1 (rear, AHD 1080p) → 15m RG59 coax → 4-pin aviation connector → BNC adapter → MDVR CH1
CAM2 (side) → same path → MDVR CH2
CAM3/CAM4 → same path → CH3/CH4
Power: 12V from MDVR output, fused 1-2A per camera

Some hybrid or IP-based systems may use ethernet cables for data transmission, providing a stable and reliable connection, and are often part of broader telematics installation and best-practice guides that cover GPS and data devices.

The goal of troubleshooting is isolating which segment has failed—not randomly swapping cameras and cables. Typical hardware in 2019–2025 fleet installs includes AHD 1080p cameras, 4/8-channel MDVR units, 10–30m extension looms, Y-splitters for power, and monitor outputs. Always ensure all components—cameras, MDVR, and monitor—are compatible with each other and with the connection types and resolutions used.

Always test one channel at a time and keep a simple log: channel tested, action taken, result. This prevents confusion across larger fleets.

When troubleshooting, check the monitor cable connections (such as VGA, HDMI, or DVI) and verify the video output settings on the MDVR to ensure proper display on the monitor.

Cable Damage Identification on MDVR Camera Runs

Physical cable damage accounts for 35–45% of MDVR service calls according to fleet maintenance logs from 2021–2025. It’s the single most common cause of no signal or intermittent image on camera channels. For example, loose or damaged cables—such as a partially unplugged connector or frayed wire—can directly cause video loss in security cameras by disrupting the signal.

High-risk cable locations include:

• Door hinges on buses (flexing 50–100 times daily)
• Tailgate and rear doors on vans
• Trailer-to-cab umbilicals on tractor-trailers (500+ connect/disconnect cycles yearly)
• Chassis routing near suspension components

Repeated flexing over 12–36 months can crack the coax centre conductor or shield, causing high resistance or intermittent open circuits.

Visual inspection steps:

1. Follow the cable end-to-end
2. Look for crushed sections and tight cable ties
3. Check for sharp bends (radius under 50mm violates RG59 spec)
4. Inspect for abrasion on metal edges or insulation cuts
5. Inspect BNC or Ethernet cables for wear or damage, as these are essential for ensuring proper power and connections in MDVRs

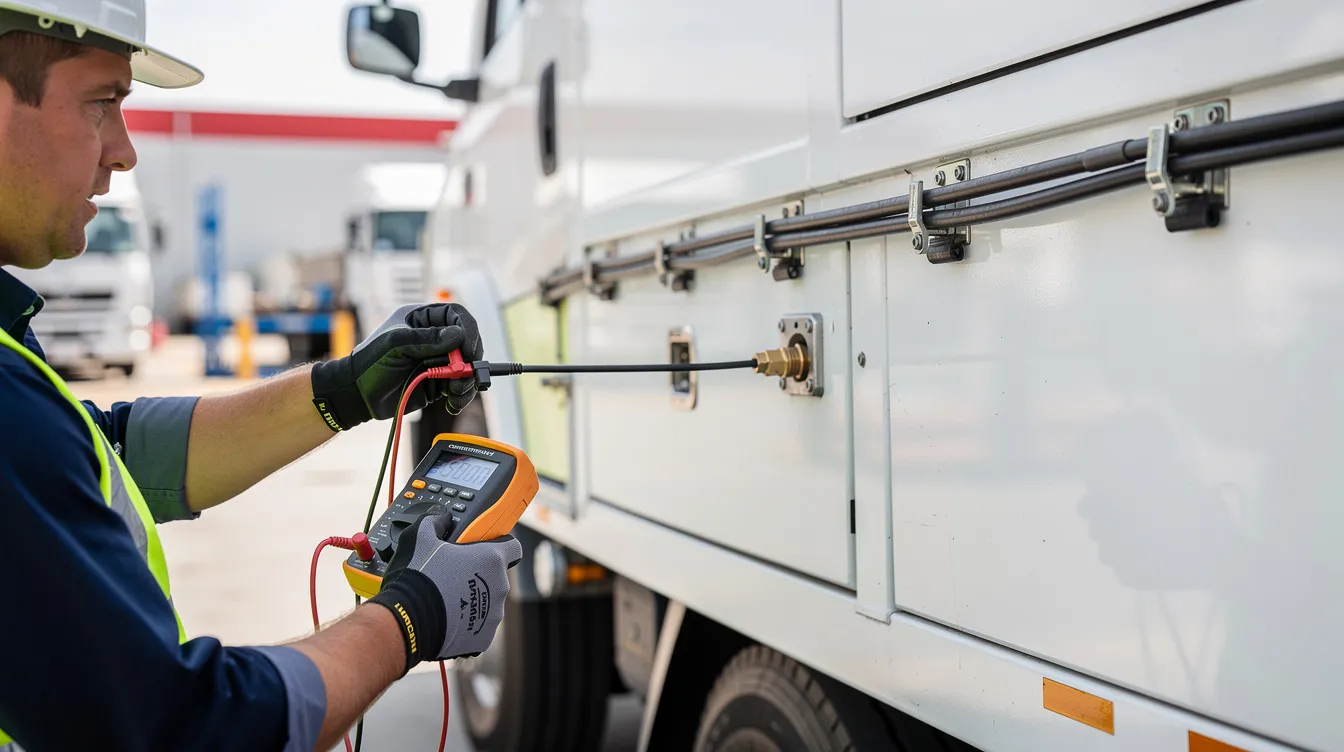

Continuity test procedure:

1. Disconnect both ends
2. Short the centre conductor at camera side
3. Measure continuity at MDVR side (expect 0–2 ohms for 20m run)
4. Repeat for shield (multi-strand braid should show under 1 ohm)
5. Check for shorts between conductor and shield (should exceed 10 MOhm)

Wiggle-test at suspect points while watching your meter—intermittents appear as resistance spikes above 10k ohms.

Connector Faults: Aviation and BNC Problems

Connector faults account for 25–30% of MDVR issues. Aviation (4-pin) and BNC connectors are designed for vibration resistance, but mechanical wear defeats them over time.

Aviation connector pin push-back occurs when female socket pins recede 1–3mm into the housing after 200–500 mate cycles. This causes video dropout on pin 3 while power (pins 1/2) continues working.

BNC crimp failures show as:

• Loose crimp sleeves (rotation over 5 degrees indicates insufficient crimp pressure)
• Centre pins failing to lock into the MDVR female bayonet
• Spinning connectors that don’t hold position

Field inspection sequence:

1. Unplug connector pairs
2. Visually check pin alignment and corrosion (green verdigris indicates moisture)
3. Gently tug each wire at rear (should resist 2kg+ pull)
4. Probe pin depth with 0.8mm feeler gauge (spec is under 0.5mm recess)
5. Examine O-rings for cracks allowing water ingress

External-facing connectors on vehicles in rain or winter de-icing conditions are especially vulnerable. Moisture can hydrolyze contacts to over 100 ohms within 6–12 months. Apply dielectric grease on pins and use zip-tie strain relief limiting flex to 10cm behind the connector.

Camera Power Supply Check on MDVR Systems

Power supply deficiencies masquerade as signal loss in 15–20% of cases. An AHD camera with no power shows as “no signal” or black screen, even though the MDVR channel itself appears active. Always check the power adapter and power cord for proper function, as issues with these components can prevent the device from receiving power correctly.

Typical power arrangements:

• 12V supplied from MDVR via 4-pin aviation cable (pin 1 = 12V, pin 2 = GND)
• Separate fused 12V feed from vehicle loom with shared ground

Most cameras expect 12V DC ±10%, tolerating 10–15V. Voltage dropping below 10V during engine cranking causes cameras to reboot or drop intermittently.

Step-by-step voltage test:

1. Set multimeter to DC range
2. Back-probe power and ground pins with system powered on
3. Confirm 11.5–13.8V steady-state
4. Move harnesses while measuring to simulate vibration
5. Cycle ignition and watch for voltage dips below 10.5V

Insufficient power supply, often due to loose cable connections, a low vehicle battery, or a blown fuse, can cause video loss such as a black screen or flickering.

Common culprits:

• Blown 2–5A blade fuses (test continuity, should show under 0.1 ohm)
• High-resistance ground points (should be under 0.5 ohm to chassis)
• Cheap 24V-to-12V converters outputting high ripple (over 500mV p-p)
• Malfunctioning power adapters and loose power cords

Fleet audits from 2024 found 12% of intermittent faults traced to corroded ground straps oxidized to 2–5 ohms after two years.

Interference from Vehicle Electronics Affecting AHD Signals

Not all MDVR issues are total signal loss. Interference shows as wavy lines, rolling bars, diagonal noise, or colour distortion—typically worsening when the engine runs. In wireless camera setups, a weak wifi signal or limited bandwidth can also cause video loss or interference, especially if network resources are unstable or constrained.

Key interference sources:

• Alternator whine at 1–3 kHz
• Ignition coil discharge pulses
• 24V to 12V converters
• High-current blower motors
• Aftermarket inverters or chargers near MDVR looms

Visual symptoms:

• Noise increasing with engine RPM
• Vertical rolling bars on screen
• Interference disappearing when engine or specific accessory switches off

Mitigation steps:

1. Re-route camera cables perpendicular (90°+) to AC and ignition wiring
2. Maintain minimum 30cm clearance from power looms
3. Cross at 90° where unavoidable, never run parallel more than 0.5m

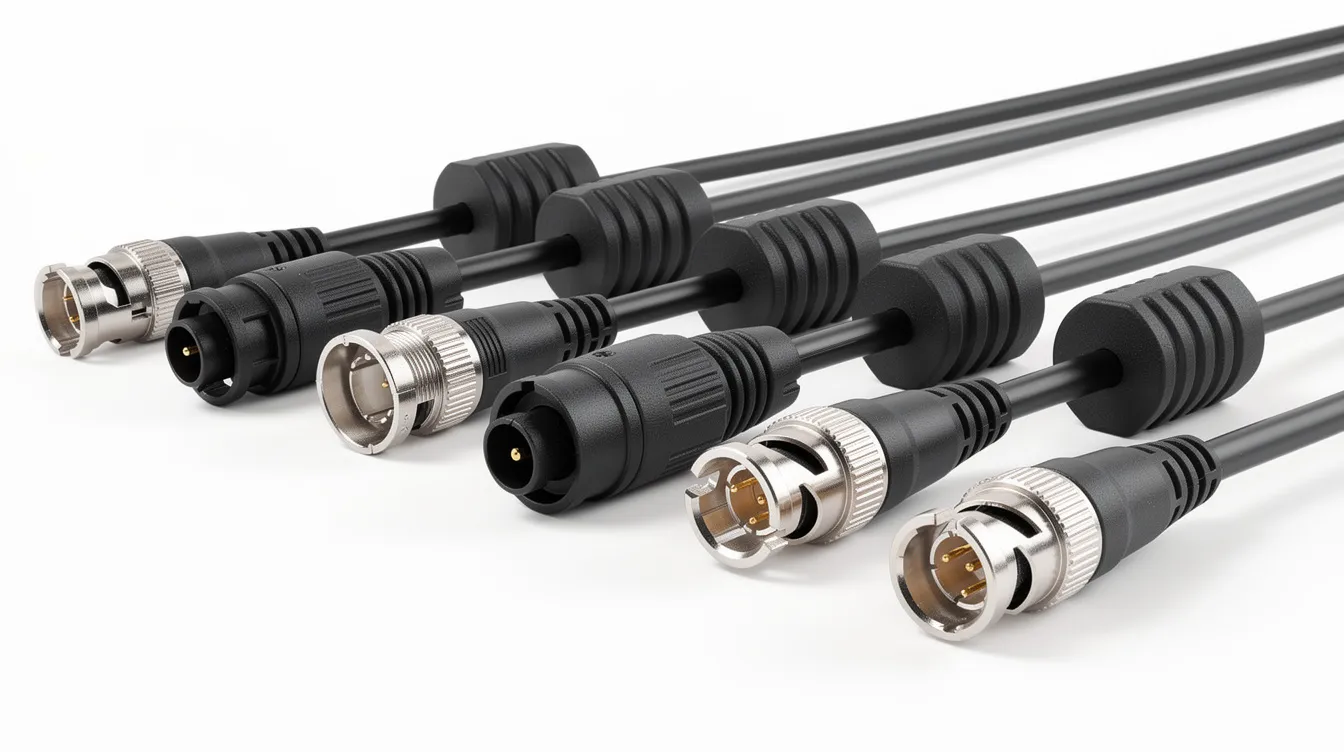

4. Add snap-on ferrite cores (31-material, 100–500 ohm impedance at 5–100MHz) at both cable ends
5. Bond MDVR chassis ground to vehicle frame (under 0.2 ohm) to eliminate ground loops

Industry data shows 80% EMI resolution with ferrite cores in vans, versus 50% with rerouting alone in tractor-trailers. When cameras double as dashcams powered continuously, also consider dashcam battery drain prevention practices so electrical noise fixes don’t introduce new power problems.

Channel Configuration in the MDVR Settings

MDVR channel configuration must match the camera’s signal type (AHD, TVI, CVI, CVBS) and resolution. Misconfiguration causes black screens or “unsupported” messages—especially common after firmware updates or unit swaps. Always check the camera’s model number to ensure you are configuring the correct settings for each device.

Many MDVRs from 2020 onwards allow per-channel format selection. Channel 1 can be AHD 1080p while Channel 2 uses CVBS. The DVR must be set correctly for each.

Where to find settings:

• System → Channel → Video Format
• Record → Encode → Channel Type

Configuration steps:

1. Log into MDVR as admin (you will need the correct password; default passwords are often 123456 or 888888)
2. Navigate to channel config menu
3. Verify each camera’s mode and resolution matches its spec sheet and model number
4. Change one channel at a time, save, and allow 30-second reboot
5. Confirm live view recovery within 10 seconds

Mixing PAL/NTSC or incorrect frame rates causes rolling images. Verify region-correct settings as part of every config check.

Testing MDVR Cameras in Isolation

Isolating the camera from vehicle wiring is the fastest way to determine whether the fault lies in the device (camera head) or the cable/MDVR device path.

Bench-test setup:

• 12V DC lab supply or vehicle battery
• Short known-good 4-pin aviation lead (1–2m)
• Portable test monitor with BNC/AV input or spare MDVR device channel

Test steps:

1. Remove suspect device (camera) from vehicle
2. Connect via short test lead
3. Power from stable 12V source
4. If the device is a cellular camera, check that the SIM card is properly inserted and functional
5. Observe whether clean image appears on test screen

Interpretation:

• Device works on bench → fault is in vehicle cable, connectors, or MDVR device channel
• Device still fails → camera module or IR board is defective, replace unit ($20–50)

Always carry at least one known-good test device (camera) and test cable in your service kit. This speeds isolation testing dramatically, similar to how following a structured dashcam installation step-by-step guide reduces setup errors and repeat work.

Replacing vs Repairing MDVR Camera Cables

While some cable faults can be patched in the field, many MDVR harnesses run through exposed, high-flex environments where replacement is safer. Always check that replacement cables and connectors are compatible with your MDVR system and the DVR box or power supply box to ensure proper signal transmission, especially when coordinating professional fleet telematics installation across multiple vehicles.

Repair may be acceptable when:

• Single clean cut in accessible straight run inside vehicle
• Enough slack to re-terminate with proper crimp tools
• Using waterproof heat-shrink (3:1 ratio)

Full replacement is required for:

• Trailer umbilicals between tractor and semi-trailer
• Cables routed through door hinges
• Multiple crushed points along the run
• Any section showing water ingress corrosion

Re-crimping BNC connectors requires correct dies (hex 6.2mm for aviation). Twisting wires together or using household connectors creates failures within months.

Lifecycle planning: Budget for proactive replacement of high-flex camera looms every 3 years or 200,000 km to prevent repeated breakdowns. UK fleet operators report 70% resolution with full loom replacement versus 40% for field splices.

When Bad Footage Becomes a Fleet Liability

Partially working cameras producing noisy, blurred, or intermittent images may look acceptable on a small monitor but prove legally useless after an incident, especially if the picture is unclear or missing at critical moments.

Insurance claims data from 2023–2025 indicates 18–22% of denied or reduced payouts in commercial vehicle collisions stemmed from unusable MDVR video footage. Signal artifacts like noise, flicker, or black screens obscured licence plates or lane positions beyond 10 metres.

Poor signal, dropped frames, or interference stripes can make number plates unreadable—undermining the fleet’s ability to prove driver behaviour. Courts and insurers increasingly require 90%+ clarity at 20 metres.

Regular audits should include:

• Monthly live view checks of all channels on all vehicles
• Quarterly playback review of recorded footage (10 minutes per camera minimum)
• Additional checks after body repairs, trailer swaps, or electrical modifications
• Regular cleaning of camera lenses to prevent dirt or condensation from affecting the picture quality

Unresolved signal problems should be escalated immediately to technical support or specialist installers rather than left until the next scheduled service, ideally through a telematics technician marketplace that vets skills and experience with fleet camera systems.

Step-by-Step Field Diagnosis Workflow

This practical workflow achieves 85% first-fix rate in under 45 minutes per channel. To resolve MDVR camera signal issues, follow the following steps, and combine them with proactive telematics maintenance practices to protect long-term system performance:

Step	Action	Time
1	Verify MDVR boot and recording status (HDD 95%+ free). Check for unformatted or full hard disks, as these can lead to MDVR system instability; format disks if necessary using management tools.	2 min
2	Check live view and channel mapping. Ensure you can access the system via the local network or internet for remote troubleshooting.	3 min
3	Visual cable inspection and continuity test. Check all camera connections and cables for damage, especially if the DVR displays ‘no video signal’. Ensure the correct input source is selected on the DVR menu. For CCTV camera systems, troubleshooting video loss often involves checking these connections and verifying compatibility.	10 min
4	Connector pin inspection and moisture check	5 min
5	Power voltage measurement with flex test	3 min
6	Check network setup, including network port, router, and PoE switch connections to ensure proper network communication and camera power.	5 min
7	EMI check (engine on/off comparison)	5 min
8	Isolate camera with bench/port-swap test	15 min
9	Adjust channel configuration if needed	5 min
Practical tips:

• Label cable ends before disconnecting
• Take phone photos of current config settings
• Note channel formats before editing
• Double check connections after any changes
• Reboot the DVR or NVR to clear out odd issues, similar to rebooting a computer
• Common fixes for MDVR camera signal issues include restarting the system, replacing damaged cables, and ensuring cameras are not obstructed or exceeding distance limits from receivers
• When troubleshooting CCTV camera video loss, always check all connections and power supplies for proper operation
• Verify 4G signal strength or Wi-Fi connection to the server, as poor signal can cause intermittent drops

Internal Links and Further MDVR Resources

This MDVR camera signal guide is part of a broader knowledge base available on our online site for fleet operators and installers that also includes latest telematics news and industry insights.

• For comprehensive system setup, see the full MDVR Systems Complete Guide
• If your unit powers on but won’t record, check MDVR not recording troubleshooting
• For vehicle power and grounding issues, consult our MDVR wiring guide

Call to Action: Professional MDVR Camera Repair Support

Fleet managers and service coordinators need faults solved in a single workshop visit—without repeat callouts and extended vehicle downtime, which is why many operators use Techsbook’s customer platform for managing technicians across their fleets.

Techsbook technicians carry full camera and cable stock for same-visit replacement. → Book a certified MDVR camera repair: You can also use Techsbook’s direct booking platform to schedule installs for telematics devices and fleet camera systems.

If you cannot solve the issue yourself, contact support or a professional technician for assistance. If one vehicle shows camera signal issues, schedule proactive inspections across your fleet. Similar age and mileage often mean similar looming faults. Professional diagnostics follow the same methodical path detailed in this article, but with specialised tools and replacement parts immediately on hand.

FAQ: MDVR Camera Signal Issues

These FAQs address common field questions that fall outside the main troubleshooting steps. Each answer provides concrete checks you can act on immediately, such as verifying the TV or display device is properly connected and set to the correct input source, ensuring all plug connections are secure, and using the correct password to access your MDVR system interface.

Why is my MDVR camera showing “no image” on just one channel?

A single-channel failure usually points to a localised problem: the specific camera, its cable run, its connectors, or that MDVR input’s configuration. Swap the suspect camera into a known-good channel using a short test lead—if it works there, the original cable or channel config is at fault. Check for bent or recessed pins on that input, damaged aviation connectors, and verify the channel format matches the camera (e.g., AHD 1080p). True MDVR input hardware failures are rarer but confirmed when multiple known-good cameras show no image on the same channel.

What causes rolling lines or flicker on MDVR camera images when the engine runs?

This is classic electrical interference from alternators, ignition systems, or nearby inverters coupling noise into the video cable or power feed. Test with engine off versus idling—if interference disappears with engine off, focus on cable routing and power conditioning. Re-route cables away from high-current looms, add ferrite cores, and verify cameras share solid, low-resistance ground with the MDVR. Poor-quality DC–DC converters on 24V vehicles often introduce high ripple; replacing them with automotive-rated units frequently clears this symptom.

How do I test an MDVR camera cable without removing the whole loom?

Perform continuity and wiggle tests from each end: disconnect the cable, short pins at camera end, measure continuity at MDVR end while flexing the harness at known stress points (door hinges, trailer couplings, tight bends). A basic multimeter confirms open circuits or shorts between centre conductor and shield. If the cable tests good electrically but the image remains unstable, focus next on connectors and MDVR channel settings.

Can I mix AHD and CVBS cameras on the same MDVR?

Many hybrid MDVR units from 2020 onward support mixing AHD and CVBS cameras, but each channel must be explicitly set to the correct mode in the menu. If a channel expecting AHD receives CVBS (or vice versa), the image may be black, distorted, or show “unsupported format.” Check the MDVR spec sheet to confirm supported formats per channel. Standardising on one format across the fleet simplifies future troubleshooting and parts stocking.

How often should fleet managers check MDVR camera signal quality?

For vehicles in daily service, perform basic visual checks of all live view channels monthly, with deeper recorded footage review every 3 months. Schedule additional checks after body repairs, trailer swaps, or any electrical modifications. High-mileage or high-vibration applications (refuse trucks, construction vehicles) may justify inspections every 4–6 weeks. Regularly check all channels and log issues centrally so patterns across models or routes can be spotted and addressed proactively.

Conclusion

Reliable MDVR camera signals depend on healthy cables, solid connectors, stable power, correct channel configuration, and controlled electrical noise. A systematic, signal-path-based approach prevents wasted time and unnecessary parts swaps—enabling first-time fixes in most cases. Ignoring degraded video footage can become a major liability after an incident, making regular inspections and prompt repairs essential for every fleet.
