Key Takeaways
- Proper ELD installation is required for FMCSA compliance in the U.S. since the final ELD mandate phase-in on December 16, 2019
- A correct eld setup improves HOS accuracy, reduces violations, and can boost operational efficiency by 10–15% when done correctly
- Truckers can choose between DIY installation and hiring professional eld installers near me depending on vehicle complexity and wiring
- Techsbook offers nationwide, on-site ELD installation services, including for mixed fleets with GPS, dashcams, and ELDs in the same visit
- ELD installation cost depends on hardware type, wiring difficulty, vehicle model year, and whether it’s a single truck or a multi-state deployment
- The advantage of ELD installation includes improved efficiency, enhanced compliance, and a competitive edge for fleets adopting the latest technology.
What Is an ELD and Why It Matters in 2026
An electronic logging device is telematics hardware that connects to your truck’s diagnostic port to automatically record hours-of-service data. The device interfaces with the vehicle’s systems through connectors like 9-pin J1939, 6-pin J1708, or OBD-II ports, capturing engine hours, odometer readings, GPS location, and driver activity. Locating the vehicle’s diagnostic port, commonly known as the OBD-II connector, is a crucial step in the installation process.
FMCSA’s ELD mandate, fully enforced since December 2019, requires most CMV drivers in interstate commerce to use registered ELDs. Modern devices often bundle GPS tracking, driver inspection workflows, and basic vehicle diagnostics. The ELD interacts with the vehicle’s electronic systems, such as CAN networks and control modules, to ensure proper functioning and compliance. They can integrate with dashcams and ELD tracking software for complete fleet visibility.
Accurate installation directly affects data accuracy and compliance. Inspectors rely on this data during roadside checks—poor eld setup or incorrect wiring can cause data gaps, malfunction codes, and possible out-of-service orders. Having proper access to ELD features and system resources is essential for configuration, troubleshooting, and efficient operation.
Why Proper ELD Installation Is Critical for Compliance & Safety
ELD hardware and software can be fully compliant on paper, but improper installation still leads to FMCSA violations. Fleets have reported 10-15% drops in violations and associated insurance premiums after standardized installs.
Correct installation prevents HOS misreporting, false “unidentified driving” segments, and sync errors between the ELD and mobile app. These issues affect compliance and can trigger fines up to $16,000 per violation.
Safety benefits include better fatigue management, fewer hours-of-service violations, and reduced crash risk. Financially, avoiding audit findings and CSA score damage protects your carrier authority. Standardized installs across a fleet give fleet managers consistent data for routing, payroll, and fuel efficiency analysis, reducing human error in recording driving hours.
Step-by-Step ELD Installation & Setup Process
While every ELD brand has its own user manual, most installations follow a similar installation process covering hardware, wiring, and eld software configuration. This guide applies to common platforms without naming them excessively.
The essential steps run from pre-install checks through final compliance testing and driver training. Any steps involving airbag circuits, OEM harnesses, or multiplexed CAN networks should be handled by professional telematics device installers.
Step 1: Verify ELD Compliance & Truck Compatibility
Confirm your device appears on the official FMCSA Registered ELD list at fmcsa.dot.gov and review a detailed guide on how to connect an ELD to your truck. Check your truck’s connector type: 9-pin J1939 for most post-2007 heavy-duty trucks, 6-pin J1708 for older models, or OBD-II for light/medium-duty vehicles.
Verify whether the power source is ECM-based or requires fused power. Trucks built between 2000-2005 often need adapters. Document your VIN, license plate, DOT number, and fleet ID beforehand to streamline software activation.
Step 2: Gather Tools and Hardware for ELD Installation
Assemble the necessary tools before you begin:
| Tool | Purpose |
|---|---|
| Phillips screwdriver | Panel removal |
| Flathead screwdriver | Prying trim |
| Plastic trim tools | Avoid airbag triggers |
| Zip ties | Cable management |
| Multimeter | Voltage verification |
| Wire cutters | Harness adjustments |
| Have a charged smartphone or tablet ready with the ELD app pre-downloaded. Keep the manufacturer’s instructions and truck wiring diagram accessible. Avoid improvised electrical connections or tapping into random power leads. |
Step 3: Locate and Prepare the Diagnostic Port
The diagnostic port is typically found underneath the driver-side dash, near the steering column, above pedals, or by the fuse panel. In Freightliner Cascadias, check under the steering column. In Kenworth T680s, look above the pedals.
The 9-pin Deutsch connector is rectangular (green or black). The 16-pin OBD-II is trapezoidal. Turn ignition off, inspect for dust or corrosion, and clean as needed. For CAN-sensitive trucks, use manufacturer-approved Y-cables to maintain compliance and data accuracy.

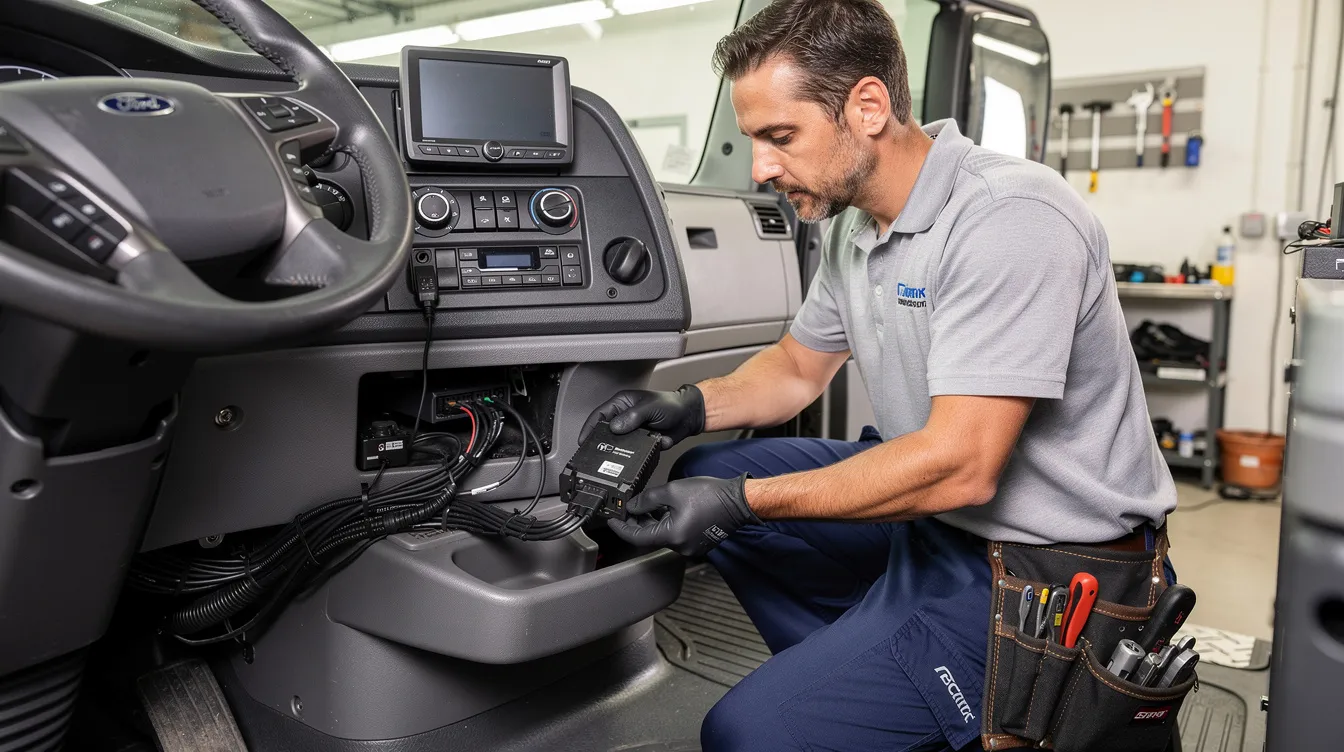

Step 4: Connect and Mount the ELD Hardware

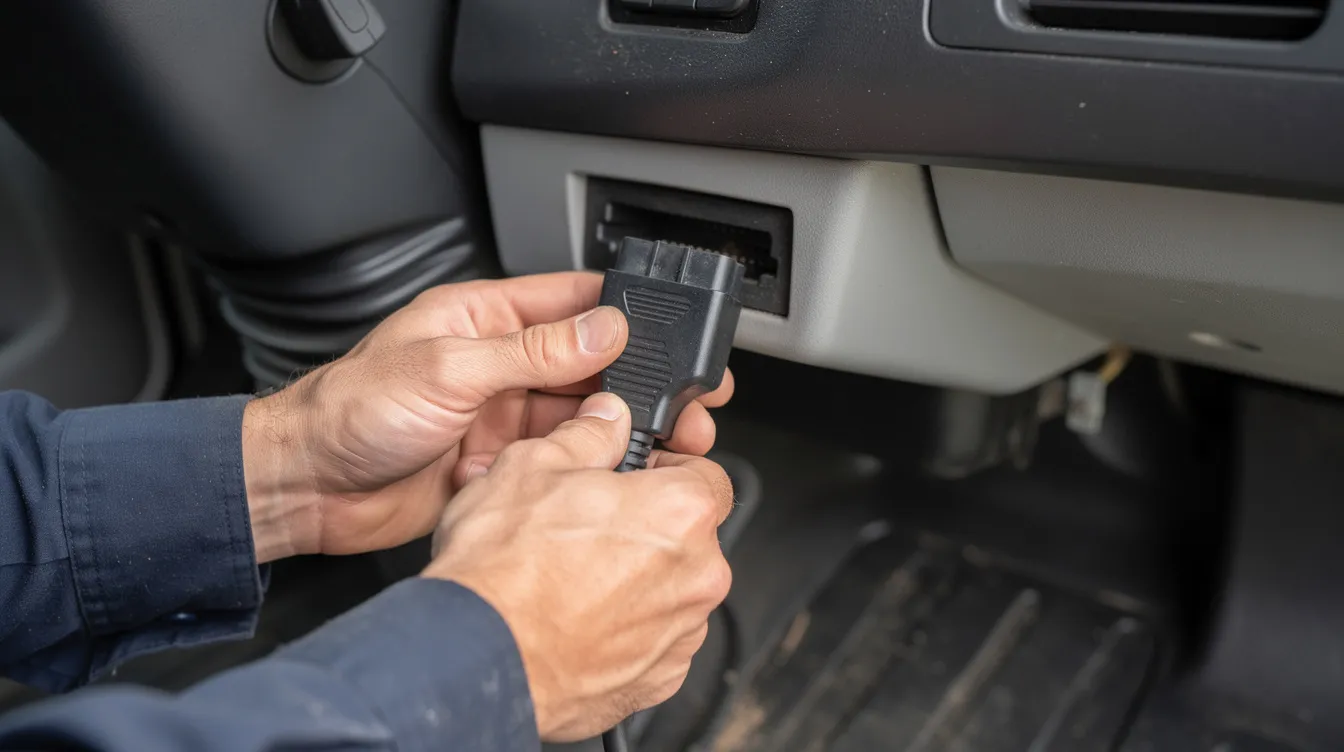

Plug the ELD cable firmly into the diagnostic port until it locks with an audible click. Route cables behind trim panels with 6-12 inch service loops to prevent strain. Secure with zip ties away from pedals and heat sources.
Mount the ELD module or tablet where drivers can easily accessible it without obstructing airbags or windshield visibility. FMCSA limits windshield obstruction to 4 inches. Follow the installation guide for torque specifications to prevent intermittent connection issues.
Step 5: Power On, Pair Devices, and Configure ELD Settings
Turn ignition to ON and wait 1-2 minutes for self-test LEDs. Green indicates ready; amber signals a malfunction. Open the ELD app, enable Bluetooth, and select your device from the scan list.
Enter pairing codes or scan QR codes provided by the vendor. Input VIN, truck number, DOT number, and time zone. Set up driver profiles, carrier information, and the correct ruleset (e.g., U.S. 70-hour/8-day, 16-hour exemption). This ensures compliance with regulatory requirements.
Step 6: Test the ELD and Train the Driver
Run a thorough test with a 10-20 minute drive. The driver should log in, manage duty statuses correctly using the ELD, and confirm functionality by verifying that driving logs are captured automatically after motion begins. Check that GPS, engine hours, and odometer values sync correctly.
Test roadside inspection mode so drivers know how to show driving logs and perform data transfer. Cover these training points: using ELD logs effectively, changing statuses, adding annotations, certifying logs, handling malfunctions, and maintaining paper backups for 8 days per FMCSA regulations.
DIY vs Professional ELD Installers Near Me
Some owner-operators successfully handle basic plug-and-play eld setup, while complex fleets benefit from professional telematics installation for maximum benefits. Mistakes in wiring or CAN bus connections cause fault codes, downtime, or incorrect logs—often costing more than professional service.
Fleets with mixed makes and both heavy-duty and light-duty vehicles should strongly consider expert help from a telematics technician marketplace. Techsbook connects fleets to vetted installers across all 50 U.S. states.
When a DIY ELD Installation Makes Sense
Owner-operators with 1-2 trucks and simple OBD-II or 9-pin plug-and-play ELDs may save money following detailed manuals. DIY works best on late-model trucks (2015-2024) with standard ports and minimal aftermarket electronics.
Plan extra time for testing and keep vendor support numbers handy. Avoid cutting OEM wiring, splicing into airbag lines, or ignoring safety warnings in the manufacturer’s instructions.
When to Hire Professional ELD Installers
Consider professional installation for:
- Older trucks with non-standard connectors
- Heavy customization (inverters, radios, fleet cameras)
- Repeated CAN faults after prior installs
- Large deployments (50-500 trucks across terminals)
Professionals complete multiple trucks per day, minimizing downtime for revenue-generating vehicles. Techsbook’s network handles multi-device installs (ELD + dashcam + GPS) in a single visit.
Techsbook ELD Installation Services & Nationwide Support
Techsbook operates as a national telematics installation platform, not just a local shop. The company specializes in ELD, GPS, and dashcam deployments for fleet technology providers, enterprise fleets, SMBs, and owner-operators.
Services run through an online platform and API integrations, enabling automated scheduling, technician credentialing, and real-time job tracking. Consider Techsbook the service layer behind your ELD program, replacing the need to build internal field installation teams.
Expert, Certified Technicians for ELD Installations
Techsbook onboards technicians through background checks, credential verification, and hands-on validation with leading ELD brands. Technicians handle both in-cab tablet setups and hardwired ELD modules.
Installation standards include photo verification and checklists to ensure consistent quality. Capabilities extend beyond ELDs to GPS units and multi-channel dashcams.

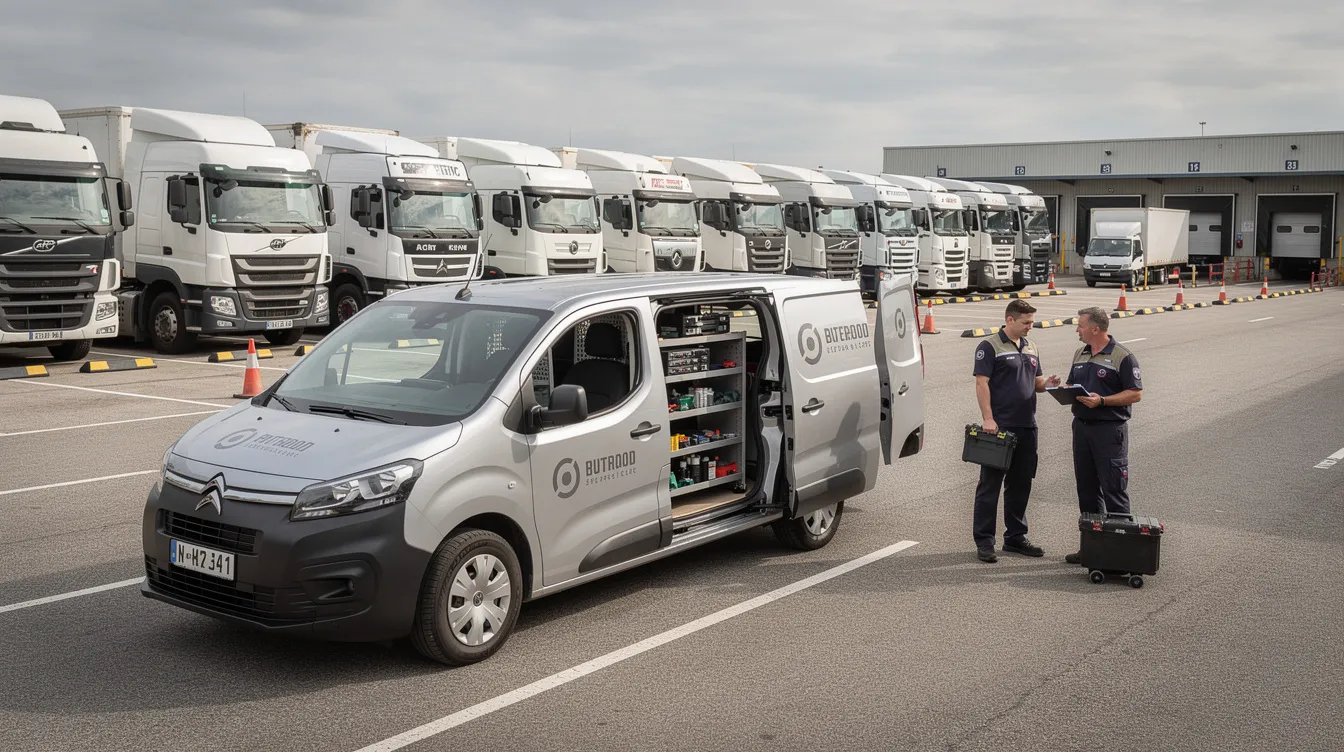

Nationwide, On-Site Support for Fleets and Drivers
Techsbook covers major freight corridors (I-10, I-40, I-70, I-80, I-95) and metro areas while serving rural locations through its mobile technician network. Fleets schedule installs at terminals, distribution centers, or driver home locations.
Real-time tracking shows technician arrival, job progress, and completion reports. This nationwide coverage supports rapid fleet growth, acquisitions, or ELD refresh projects in 2026-2027.
Fast ELD Setup, Deployment Projects, and API Integrations
Techsbook handles single same-week bookings to planned rollouts of hundreds of trucks over 30-90 days. Fleet technology providers use APIs to automatically trigger installation orders when devices ship.
Standardized install forms, photos, and serial number capture feed directly into fleet systems for inventory tracking and fleet data analytics that enhance operations management.
Compliance Assurance and Quality Control
Techsbook uses checklists aligned with FMCSA regulations to ensure compliance and enable accurate drive detection. Post-install verification confirms GPS lock, odometer sync, and sample roadside inspection tests.
SLA-backed service options cover response times and completion rates, helping safety teams navigate audits confidently.
ELD Installation Cost: What Affects Your Budget?
ELD installation cost typically combines hardware, subscription, and labor and can vary depending on the specific ELD solution, such as Motive ELD pricing. Here are 2026 U.S. market benchmarks:
| Component | Typical Range |
|---|---|
| Hardware | $150–$500/truck |
| Install labor | $100–$300/vehicle |
| Monthly subscription | $15–$40/unit |
| Multi-vehicle projects often achieve lower per-unit pricing through batch scheduling. Factor in hidden costs: downtime, rework from poor installs, and potential fines from non-compliance. |
Main Factors That Influence ELD Installation Pricing
Key pricing factors include:
- Number of vehicles and geographic spread
- Truck make/model complexity
- Hardware type (plug-and-play vs hardwired)
- Additional devices installed simultaneously
Older or customized trucks take longer than standard modern tractors. Centralized yard installations cost less than scattered on-the-road visits. Working with Techsbook helps standardize pricing across your business.
How to Budget for a 2026 ELD Deployment
Map a multi-month plan covering device procurement, installation slots, driver training, and internal auditing. Build per-vehicle budgets assuming labor and short downtime, then adjust for volume discounts.
Compare DIY vs professional scenarios, factoring revenue loss if trucks sit idle. Request detailed quotes itemizing labor, travel, hardware, and after-hours surcharges for sustainable success.
Common ELD Installation Mistakes to Avoid
Many FMCSA compliance problems trace to small, avoidable errors during eld setup. Following the manufacturer’s instructions, using certified technicians, and reviewing a dedicated Motive ELD installation and troubleshooting guide eliminates most pitfalls.
Hardware and Wiring Errors
Common issues include loose connectors that leave undiscovered issues, poorly routed cables near pedals, and incorrect T-taps into sensitive circuits. On vehicles with multiple CAN networks, direct port connections cause ghost fault codes.
Secure harnesses with zip ties and maintain service loops. Use manufacturer-approved Y-cables to preserve OEM ports—ensure a tight fit without forcing connectors.
Software, Setup, and Training Gaps
Mistakes include wrong time zone settings, incorrect rulesets, or missing carrier profiles. Drivers not properly assigned to vehicles create unidentified driving segments, especially if they don’t fully understand how to use ELD logs day to day.
Skipping training on roadside inspection mode causes confusion during real inspections. Conduct internal audits in the first 30-60 days to catch configuration issues early.
How Techsbook Simplifies ELD Installation for Every Fleet Size
Techsbook acts as a single point of coordination for all ELD installation needs. Telematics providers can embed Techsbook workflows so customers request eld installers with one click.
SMB fleets and owner-operators book on-demand installs online without long-term contracts. Contact Techsbook for an estimate or to discuss your 2026 deployment project.
Frequently Asked Questions About ELD Installation
These FAQs address practical questions beyond basic definitions, written for truck drivers, dispatchers, and fleet managers planning installations this year.
How long does a typical ELD installation take per truck?
Simple plug-and-play installs often take 30-60 minutes, while hardwired or multi-device installs require 90-180 minutes per vehicle. Time varies based on truck model, cab layout, and whether the technician also handles driver training. Schedule realistic buffers to avoid dispatch disruptions during peak freight season.
Can ELD installers come to my yard, terminal, or driver’s home?
Many eld installers, including those in the Techsbook network, operate as mobile technicians meeting trucks at yards, docks, or home locations. On-site service reduces downtime compared to shop visits. Verify travel charges or minimum vehicle counts when planning larger installation events.
What if my truck is older or doesn’t have a standard diagnostic port?
Pre-2000 or specialty vehicles may need adapter harnesses, custom wiring, or specific ELD models compatible with older ECM protocols, and some categories like dump trucks have unique ELD exemption rules explained in detail in this guide to whether dump trucks need ELDs and which types qualify. Professional technicians locate the correct solution after checking vehicle build year and existing wiring. Contact your ELD provider and Techsbook before purchase to verify compatibility.
Can I transfer my ELD hardware to a new truck or when I change providers?
Most ELD hardware can be removed and reinstalled in another compatible truck, though new cables or brackets may be required. Switching providers involves both hardware swaps and software migration, especially if you’re moving to a new platform like the Motive ELD device for streamlined compliance. Plan transfers during scheduled maintenance to minimize disruption.
Do I still need paper logs after ELD installation?
Drivers must maintain paper log backups for use during ELD malfunctions, per FMCSA rules in 2026. Fleets should have a written malfunction policy so drivers know when to revert to paper. Review current FMCSA guidance and company policies, as regulatory standards can change.
